Compared with traditional internal combustion engine forklifts, electric forklifts have the following advantages:
Environmental protection and energy saving: Electric forklifts have no exhaust emissions, low noise during operation, and meet environmental protection requirements. At the same time, the energy consumption is relatively low, which greatly reduces operating costs.
Flexible operation: Small size and small turning radius, can be flexibly operated in a small space. It can enter and exit narrow areas such as containers and carriages to complete loading and unloading.
Convenient maintenance: No need to regularly maintain the engine, etc., greatly reducing maintenance costs and downtime. The battery can be recycled and is more environmentally friendly.
Safe and reliable: The motor drive makes the control more precise and reduces accidents. At the same time, it is equipped with an intelligent safety system to avoid collisions and other situations.
Long service life: The main components are durable, the working time is long, and the maintenance cycle is long.
Good power performance: high output torque, fast lifting and lowering speed. It is also suitable for heavy-load cargo transportation.

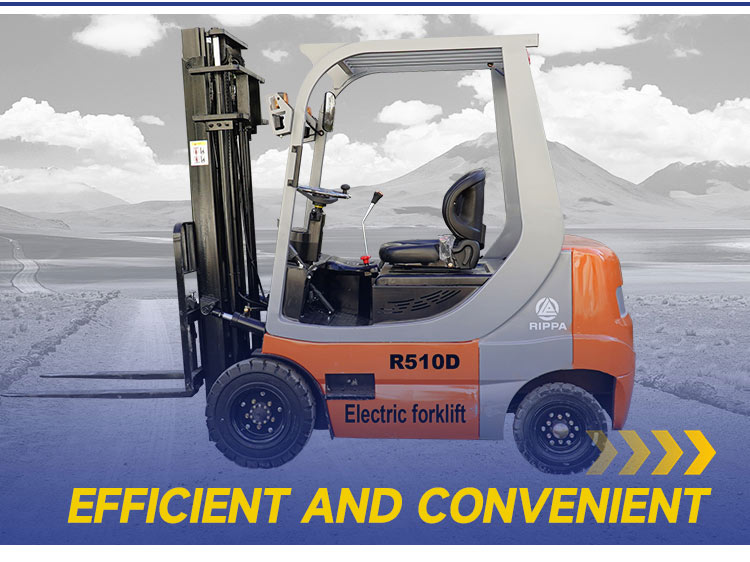

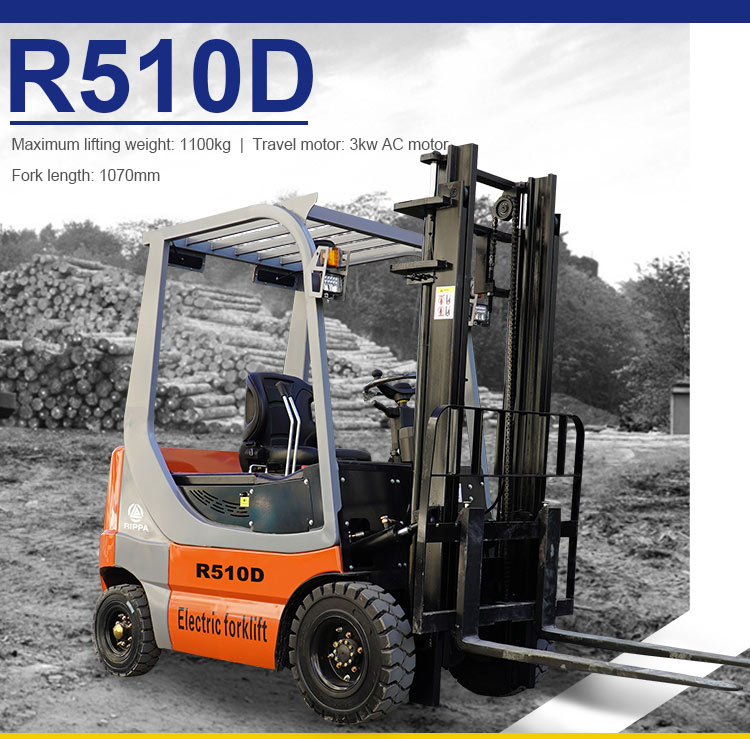

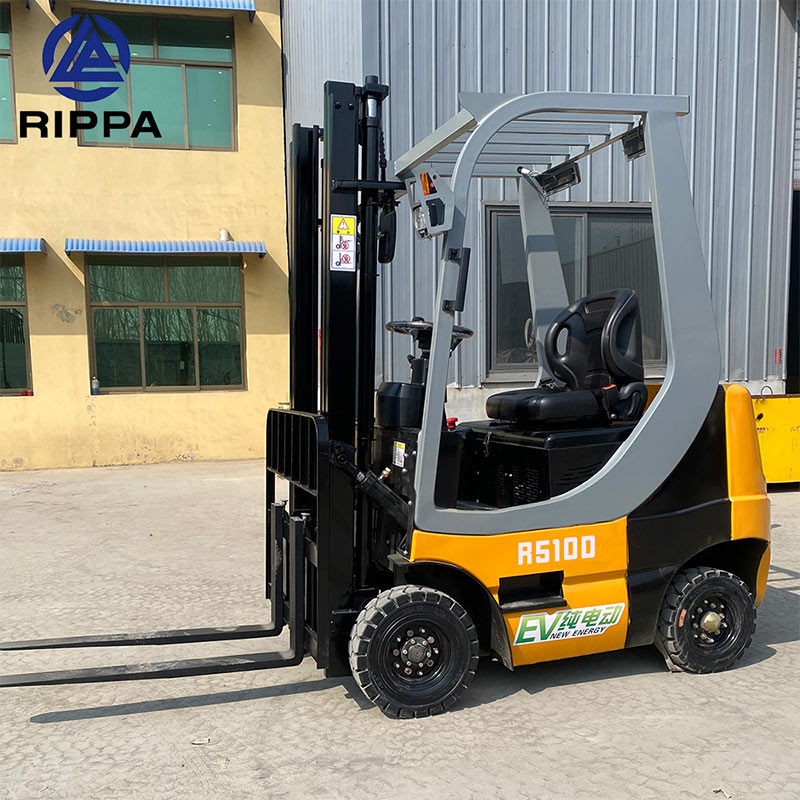

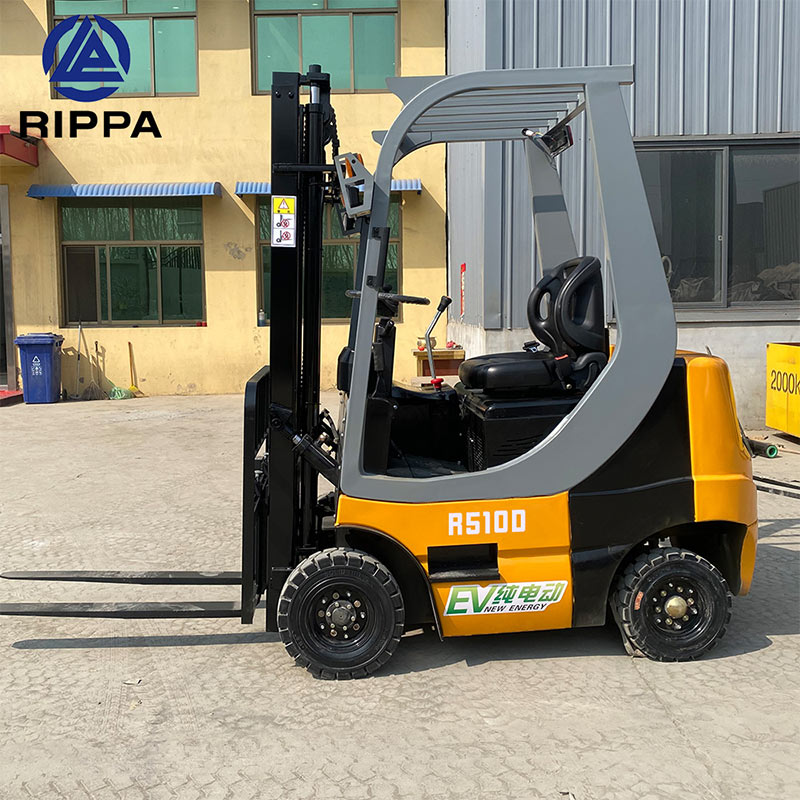

Model | R510D |
Maximum lifting weight | 1100kg |
long | 2100mm(Does notinclude fork) |
long | 3170mm(Contains forks) |
Width | 1100mm |
high | 2150mm |
Vehicle dead weight | 1700kg |
Lifting height | 3000mm |
Body material | Thickened one-piece stamped body |
Travel motor | 3kw AC motor |
Voltage | 60v |
controller | Xingdian Engineering Vehicle Special Controller |
Battery | 5 maintenance-free batteries |
lights and signals | Lighting lights, left and right turn signals, brake lights, driving lights, instruments, electric horns, etc. |
Drive axle | Cast steel integrated vehicle-specific bridge |
tire | Front wheel 500-8, rear wheel 400-8 solid tires |
Steering bridge | Special rear axle for heavy-duty steel plate forklifts |
Braking method | Hand brake. oil brake |
Lifting cylinder | High precision aviation grinding casing, one-way double cylinder |
Fork length | 1070mm |
Hydraulic lift motor | 2500W AC motor |
steering method | Hydraulic assist method |
Turning radius | 2200mm |
