Electric Forklift R515D 1.5Tom

1.ODM, OEM, Can Be Customized

2.This Product Certificate: CE / ISO / EURO5 / EPA / SGS / ECM

3.We are a Chinese manufacturer, welcome to visit the factory

4.Fill In The Information, Be Our Agent!

Contact Now

Product Details

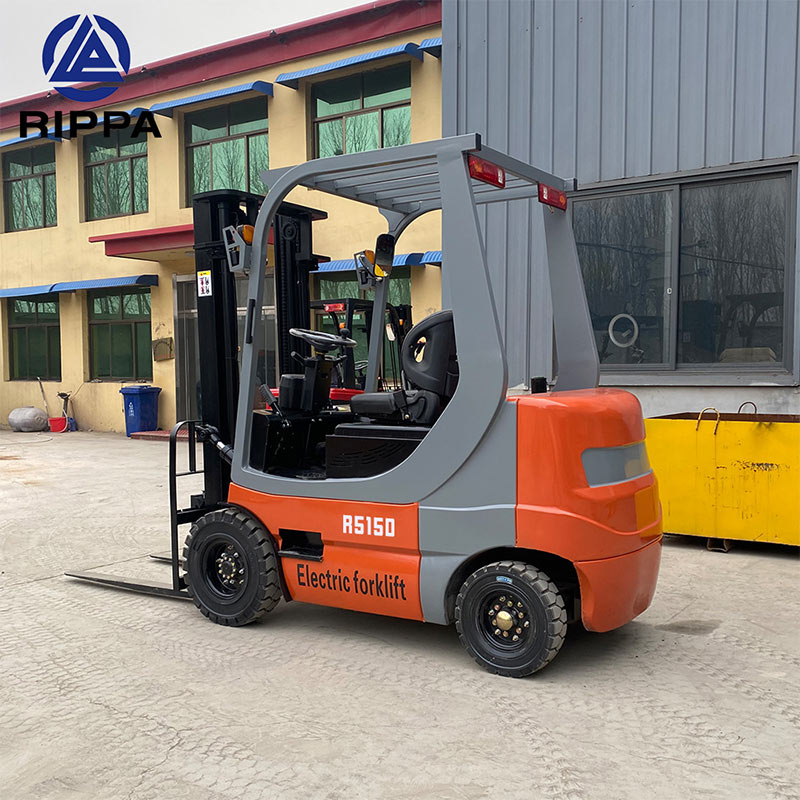

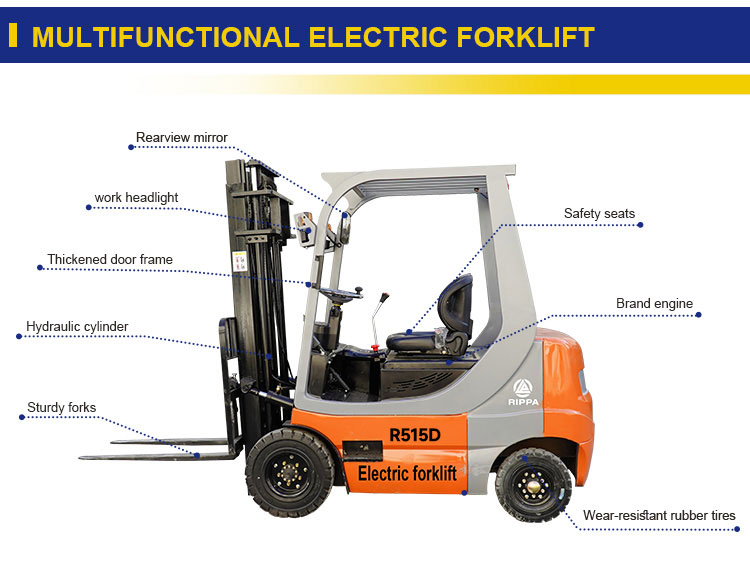

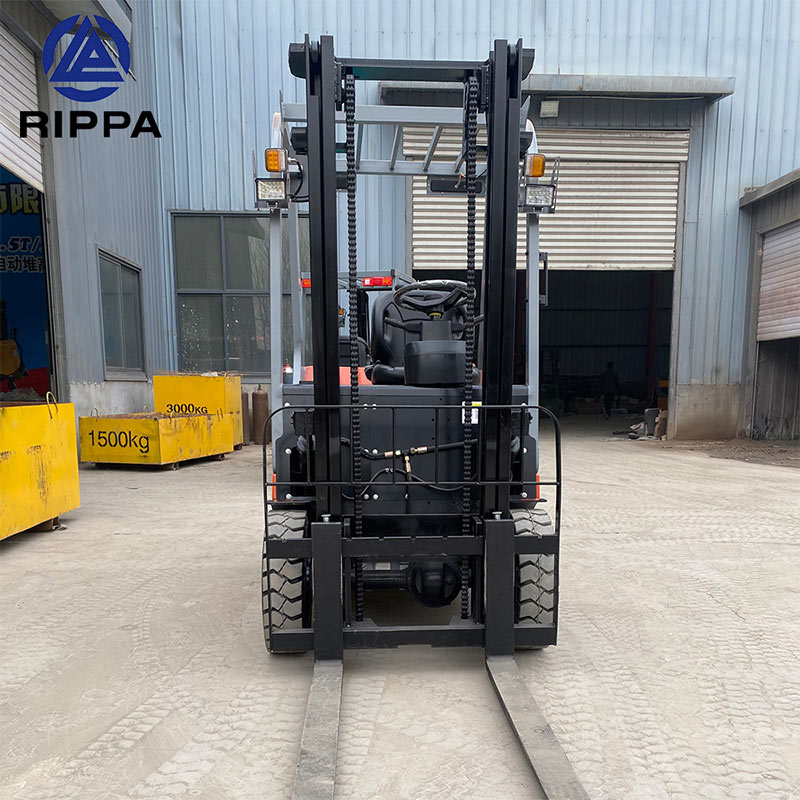

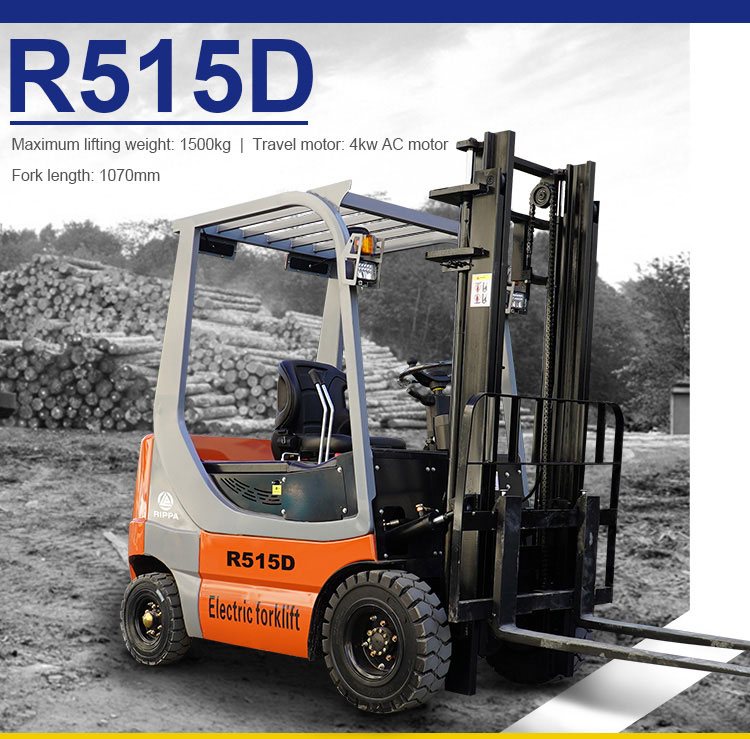

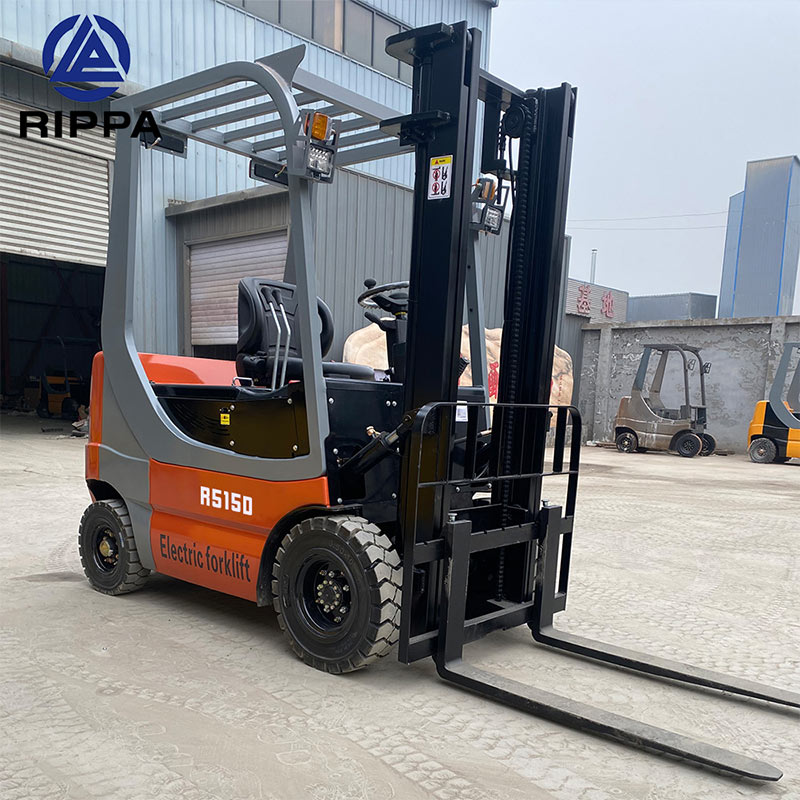

This R515D electric forklift has the following advantages:

Super strong load-bearing capacity, the maximum lifting weight is 1500kg, which can meet the handling needs of various heavy goods.
Large size, length of 2250mm, width of 1100mm, height of 2150mm, suitable for various storage environments.
The vehicle weight is 2600kg, with good stability and maneuverability.
The lifting height of 3000mm can easily load and unload goods on high shelves.

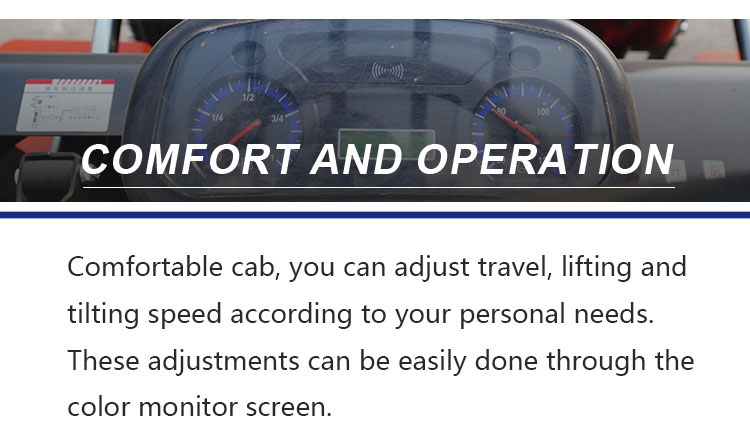

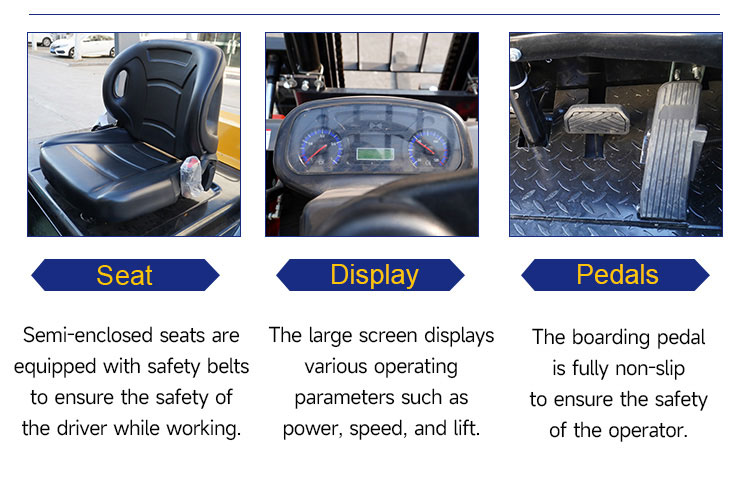

The integrated pedal design makes the operation simpler and more convenient.
Equipped with a 3kW AC motor, it has excellent power performance and can meet the needs of high-intensity operations.
The 60V voltage system is safe and reliable and suitable for various industrial environments.
The Hager controller is used, which is flexible to control and can achieve precise positioning.

Model	R515D
Maximum lifting weight	1500kg
long	2250mm((Does not include fork)
long	3320mm(Contains forks)
Width	1 100mm
high	2150mm
Vehicle dead weight	2600kg
Lifting height	3000mm
Body material	Thickened one-piece stamped body
Travel motor	3kw AC motor
Voltage	60v
controller	Hager controller
Battery	5 maintenance-free batteries(12v-85v)
lights and signals	Lighting lights, left and right turn signals, brake lights, driving lights, instruments, electric horns, etc.
Drive axle	Cast steel integrated vehicle-specific bridge
tire	Front wheel 650-10,rear wheel 500-8 solid tires
Steering bridge	Special rear axle for heavy-duty steel plate forklifts
Braking method	Hand brake, oil brake

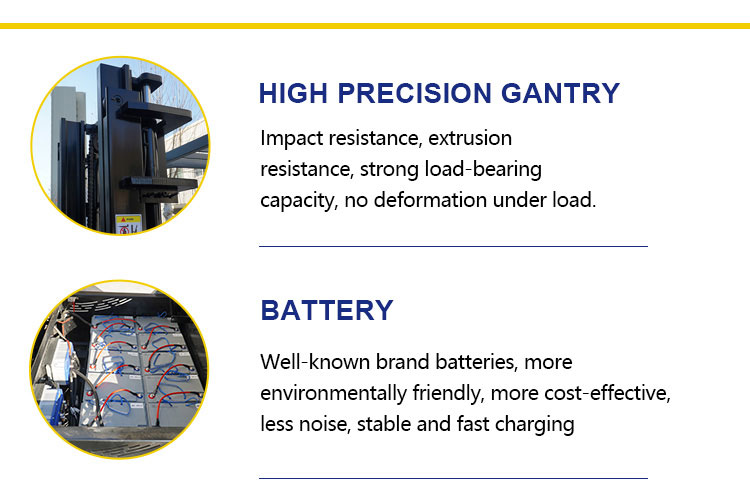

Lifting cylinder	High precision aviation grinding casing, one-way double cylinder
Fork length	1070mm
Hydraulic lift motor	2500W AC motor
steering method	Hydraulic assist method
Turning radius	2420mm
