Rippa ODM L330 Mini Excavator Home

1.ODM,can be customized

2.Sino-German joint venture ,German technology

3.Yanmar/Kubota diesel engine

4.Imported accessories,used thicker high-quality steel

5.Signle-forging forming cylinder,not esay to break,built-in NOK seal.

6.The used of internayionally renowned brand reducers.

Contact Now

Product Details

L330 mini excavator 2 ton excavator. Very cost-effective, equipped with hydraulic pilot handle, more sensitive and smooth than machine operation, flexible and portable for two-hand operation. It has many advantages such as swing arm, extended track, high and low speed. The rotating motor gear adopts spline technology, which transmits large torque and is not easy to damage. The rotating motor gear adopts spline technology, which transmits large torque and is not easy to damage. Increase the oil drain hole to avoid oil leakage. The central rotary electric machine also uses an additional oil return line, which is consistent with the working principle of the rotary electric machine.

zero tail swing excavator

Specification

Model	L330 mini excavator
WEIGHT
Total weight	2000kg
SIZE
Total length	2800mm
Total width	1100mm
Total height	2300mm
Max.digging radius	3760mm
Max.Digging depth	2100mm
Max.digging height	3365mm
Max.dumping height	2385mm
Min.ground clearance	210mm
DRIVE
Engine brand	Yanmar/Kubota
WALKING CHARACTERISTICS
Walking speed	0-4.5km/h
Climbing angle	35°

Details

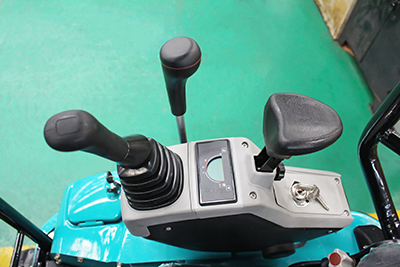

L330 2 ton mini excavator can choose kubota engine,It is equipped with a hydraulically controlled pilot handle, which is more sensitive and smoother than the operation of the machine,flexible and portable operation on both sides of hands.

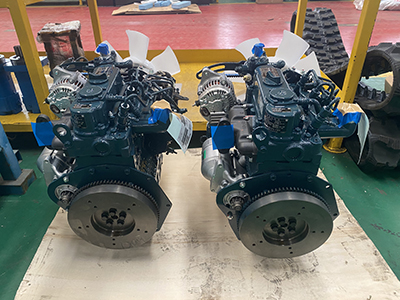

kubota engine mini excavator parts

Application

2 ton crawler hydraulic mini excavator applicable to indoor demolition,toilet upgrading,engineering forcible entry,excavator barren hills,small earthwork,municipal projects,break concrete,dredging river and pther working environment.

minibagger
