Rippa Zero Tail Swing Excavator 2T

1.ODM,can be customized

2.Sino-German joint venture ,German technology

3.Yanmar/Kubota diesel engine

4.Imported accessories,used thicker high-quality steel

5.Signle-forging forming cylinder,not esay to break,built-in NOK seal.

6.The used of internayionally renowned brand reducers.


  Contact Now
Product Details

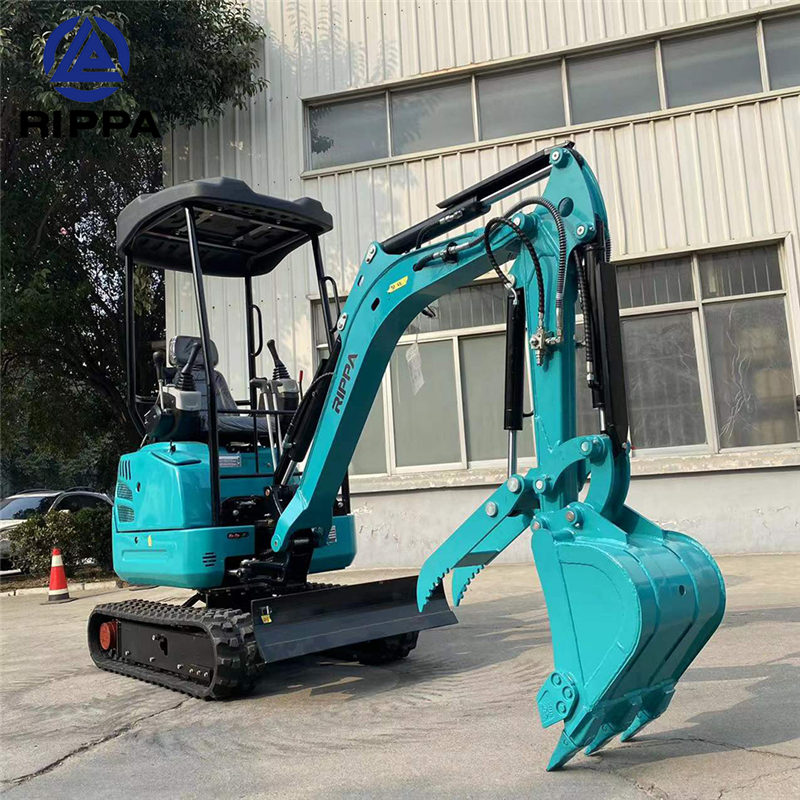

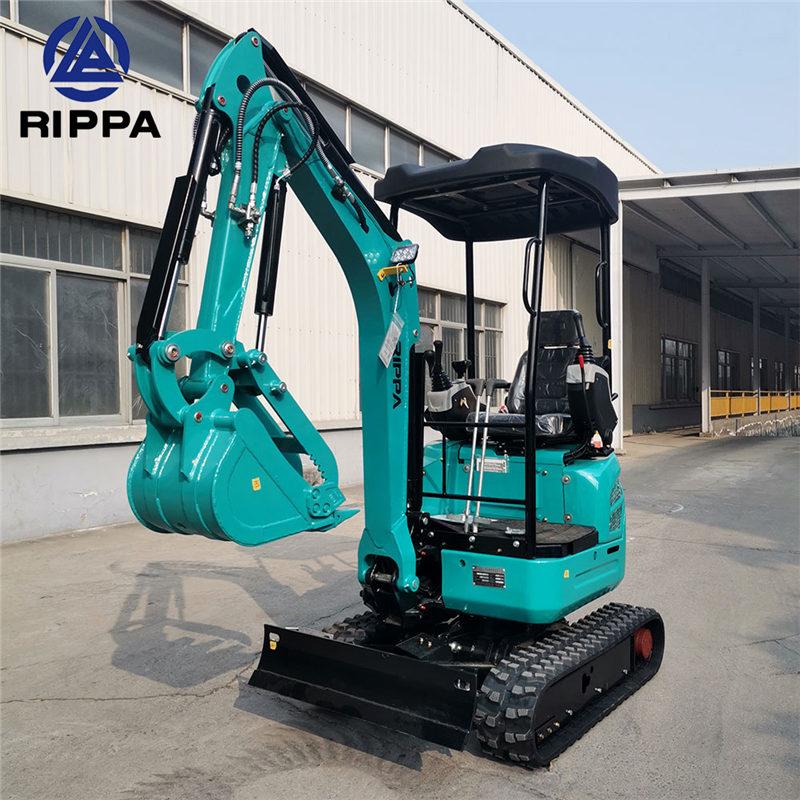

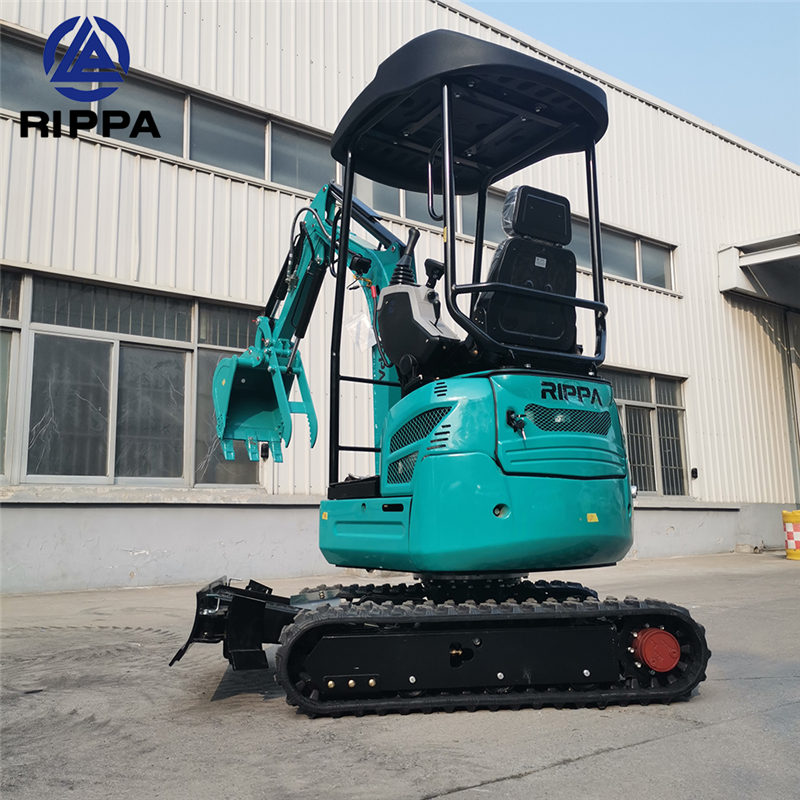

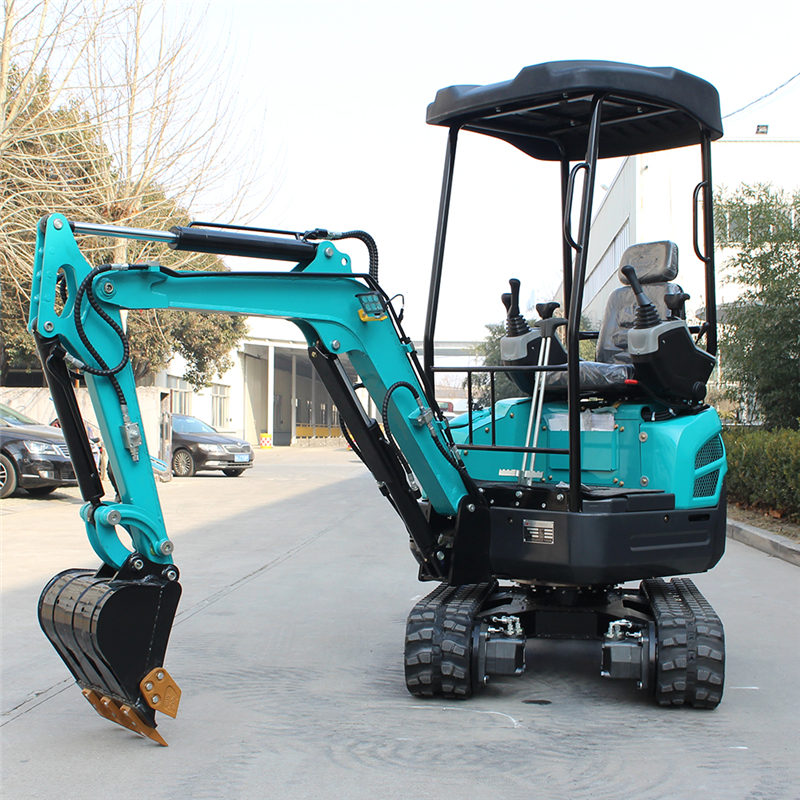

L330 mini excavator 2 ton digger. Equipped with a hydraulic pilot handle, it is more sensitive and stable than the machine operation, and the two-hand operation is flexible and portable. It has many advantages such as swing arm, extended track, high and low speed, no tail, telescopic track, etc. The hydraulic pump adopts the nine-tooth spline technology, which is more stable. The hydraulic pump shell is made of one-time stamping, which can reduce the internal leakage caused by thermal expansion and contraction. The travel motor from Eaton in the United States is used, with a return oil pipeline to protect the travel motor from overload. It has an additional hydraulic oil connection. According to the oil flow in the cylinder, after a certain critical point is exceeded, the excess hydraulic oil can be better returned to the hydraulic oil tank under the control of the relief valve. Take action now contact us!

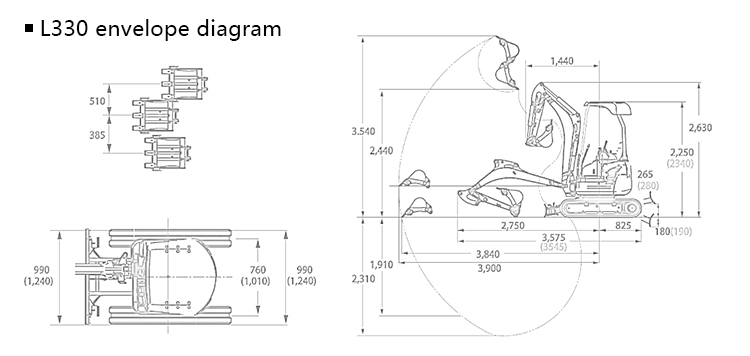

Specification

Model

L330 mini excavator

                                                             WEIGHT

Total weight

2000kg

                                                               SIZE

Total length

2800mm

Total width

1100mm

Total height

2300mm

Max.digging radius

3760mm

Max.Digging depth

2100mm

Max.digging height

3365mm

Max.dumping height

2385mm

Min.ground clearance

210mm

                                                             DRIVE

Engine brand

Yanmar/Kubota

          WALKING CHARACTERISTICS

Walking speed

0-4.5km/h

Climbing angle

35°


Contact Our Team For A Quote

Details

L330 2 ton mini excavator can choose kubota engine,It is equipped with a hydraulically controlled pilot handle, which is more sensitive and smoother than the operation of the machine,flexible and portable operation on both sides of hands. Take action now contact us!

Contact Our Team For A Quote

kubota engine mini excavator parts


Contact Our Team For A Quote


Application

2 ton crawler hydraulic mini excavator applicable to indoor demolition,toilet upgrading,engineering forcible entry,excavator barren hills,small earthwork,municipal projects,break concrete,dredging river and pther working environment. Take action now contact us!


Contact Our Team For A Quote



Feedback

feedback of mini excavator.jpg feed back of excavator .jpg


Take action now contact us!



Product form
