Mini Digger Makes

1.ODM,can be customized

2.Sino-German joint venture ,German technology

3.Yanmar/Kubota/Changchai 192F diesel engine

4.Small and flexible,360-degree rotation,easy to master

Product Details

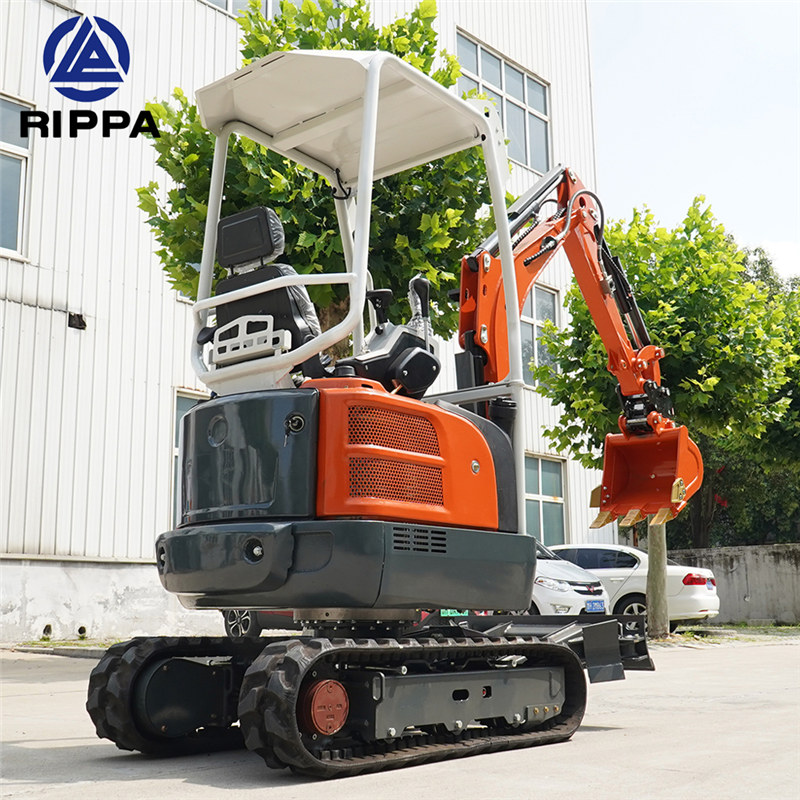

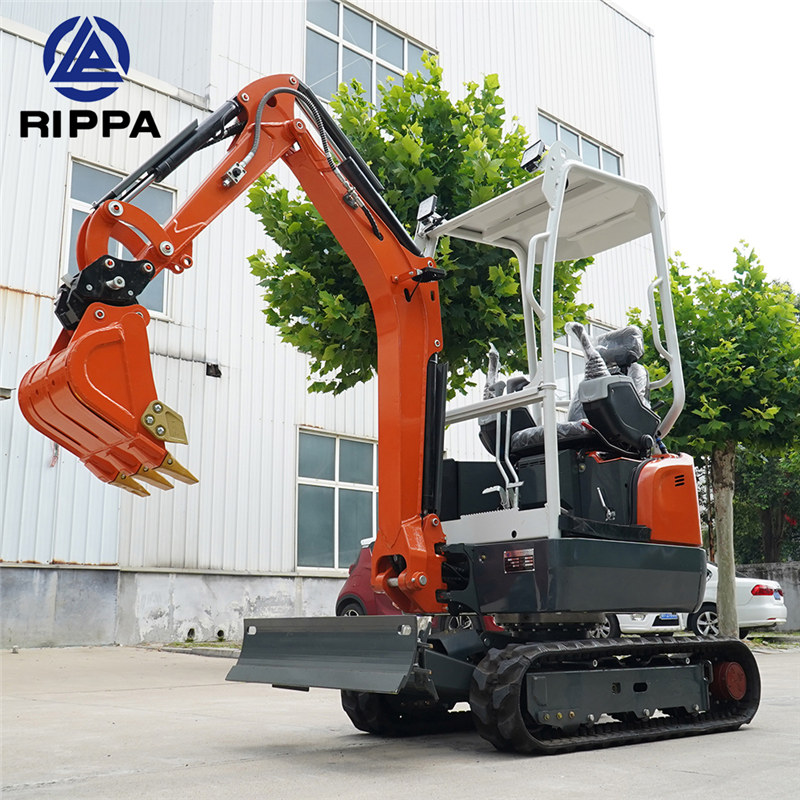

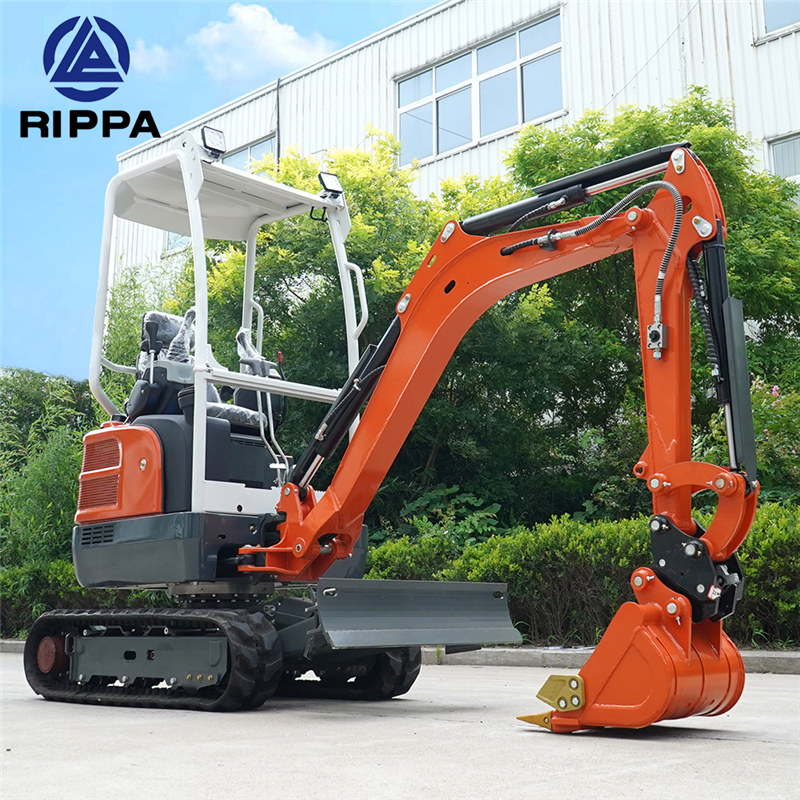

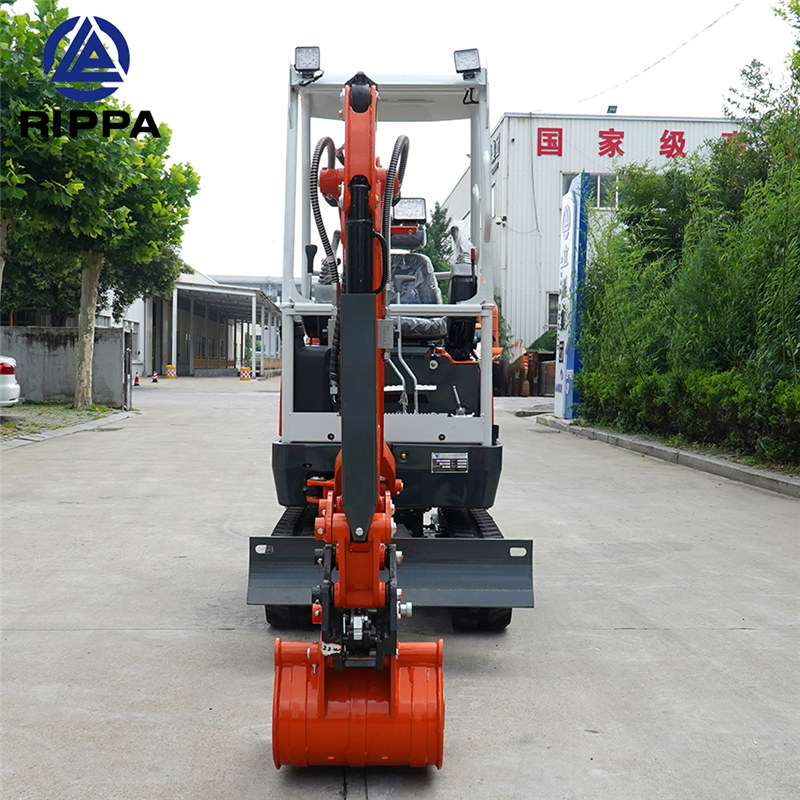

Rippa L335W 2 ton mini excavator, mini bagger is small but powerful. The mini escalator can paint directly on small terrains and narrow areas. Structural elements are made of chrome steel or plastic sprayed to extend the life of the machine. The 360-degree body rotates freely, and the width of the rotation will not exceed the width of the crawler, which avoids the collision of surrounding objects and protects the rear of the machine to the greatest extent.

2.2 T Excavator

Specification

Model	L335W mini excavator
WEIGHT
Total weight	2200kg
SIZE
Total length	3585mm
Total width	1300mm
Total height	2360mm
Max.digging radius	4050mm
Max.Digging depth	2490mm
Max.digging height	3580mm
Max.dumping height	2440mm
Min.ground clearance	450mm
DRIVE
Engine brand	Kubota
WALKING CHARACTERISTICS
Walking speed	0-4.5km/h
Climbing angle	30°

Details

L335W 2.2 ton mini excavator can choose kubota engine,the hydraulic cylinder adopts sealing parts to prevent oil leakage; the piston rod is made of one-time forging, without welding; it is not easy to break.

Application

Crawler hydraulic micro mini excavator is widely used in greenhouse,indoors and landscaping.for example,2.2 ton mini excavator can be used to apply fertilizer,dig deeply in the orchard,channel excavation,plant trees,dig cable trench,excavate water pipe,and to break indoors.L335W 2.2 ton crawler micro mini digger excavator only takes a few minutes to be familar with its operations.

Crawler hydraulic micro mini excavator.jpg
