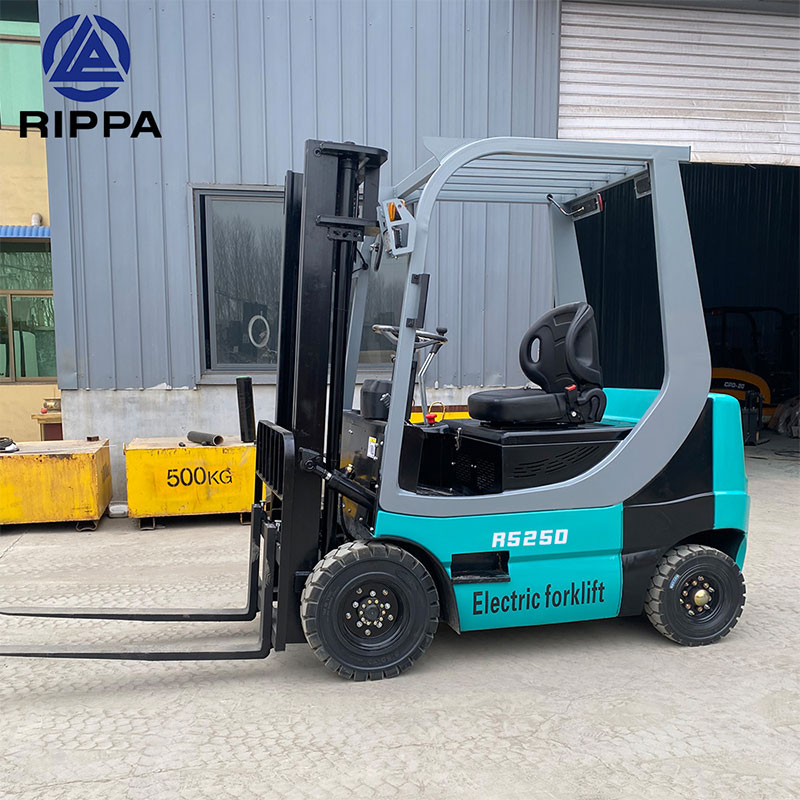

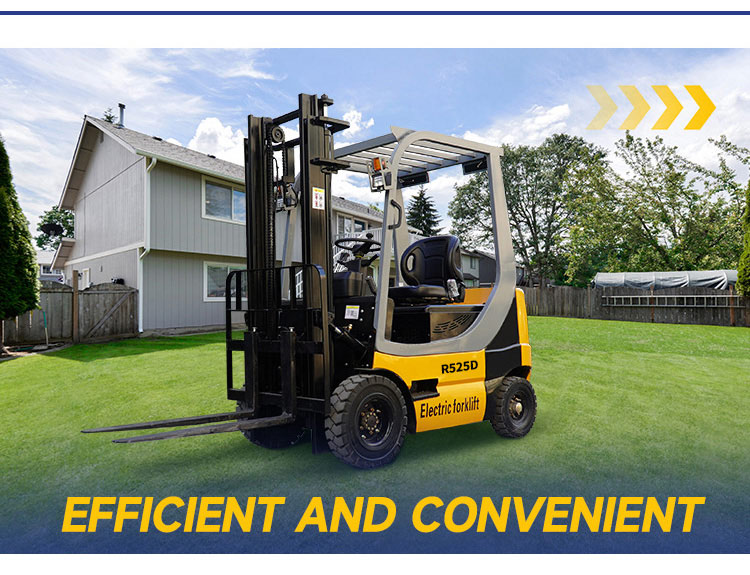

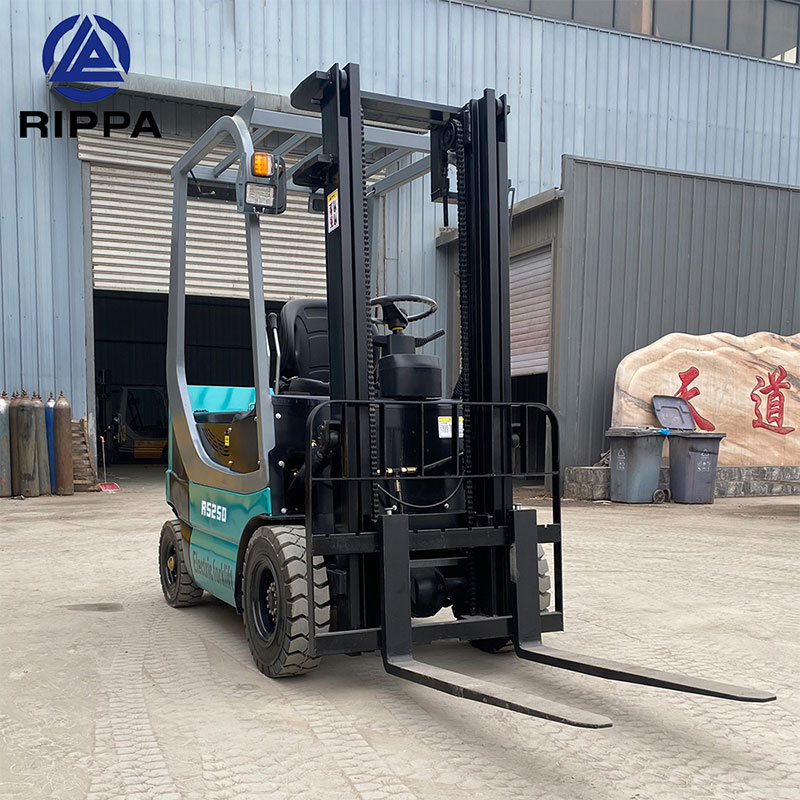

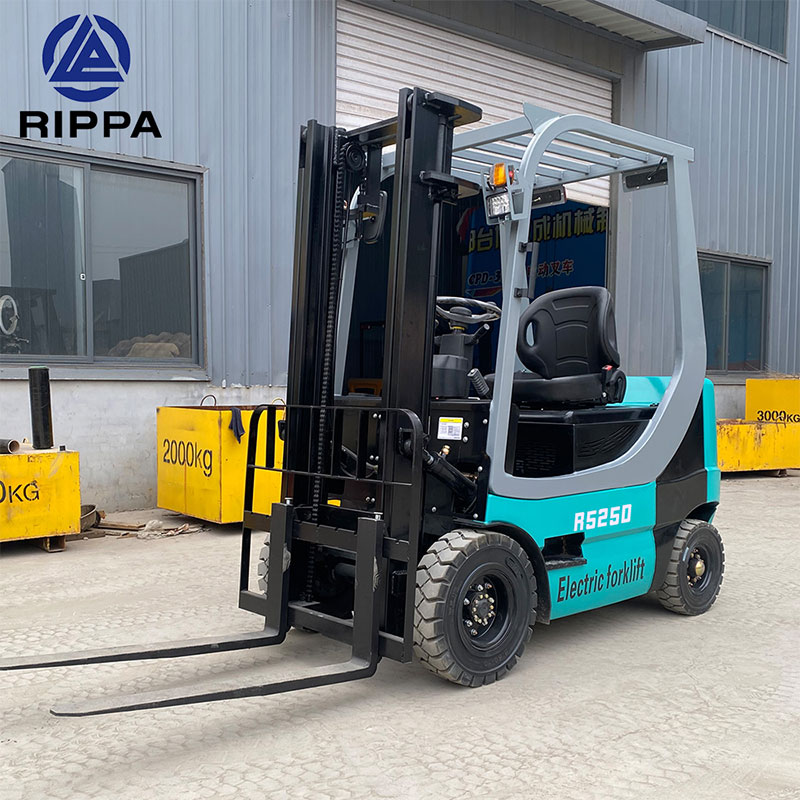

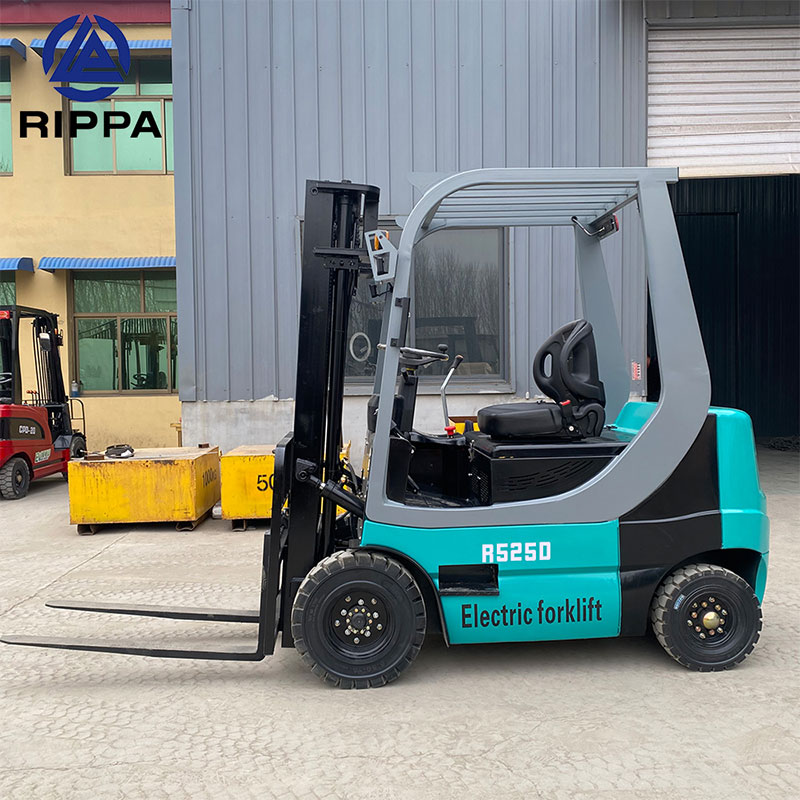

Electric Forklift R525D 2.5Tom

1.ODM, OEM, Can Be Customized

2.This Product Certificate: CE / ISO / EURO5 / EPA / SGS / ECM

3.We are a Chinese manufacturer, welcome to visit the factory

4.Fill In The Information, Be Our Agent!

Product Details

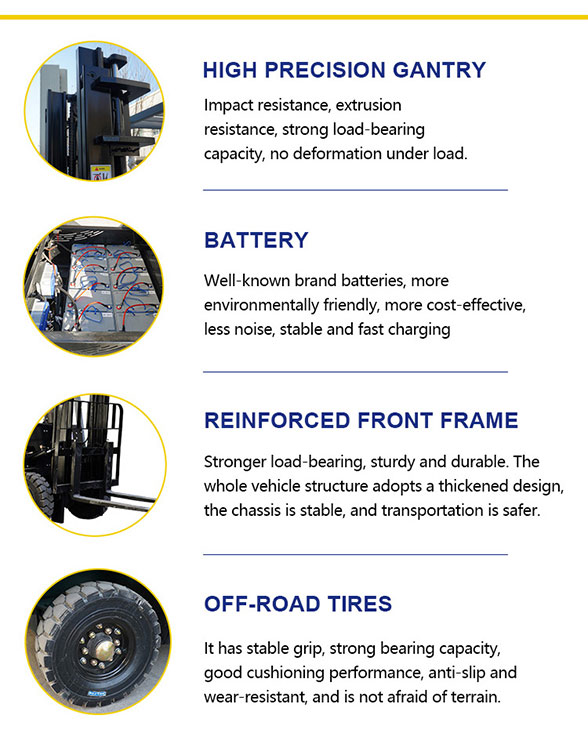

This R525D multi-purpose electric forklift has excellent performance characteristics. It adopts a high-precision gantry design with strong impact resistance, extrusion resistance and wear resistance. The reinforced front frame is more durable and ensures the stability and safety of the vehicle.

In addition, this forklift is equipped with wear-resistant all-terrain tires, which can travel stably on various terrains. The battery has excellent performance and can run stably for a long time in harsh environments, with low noise and more comfortable operation.

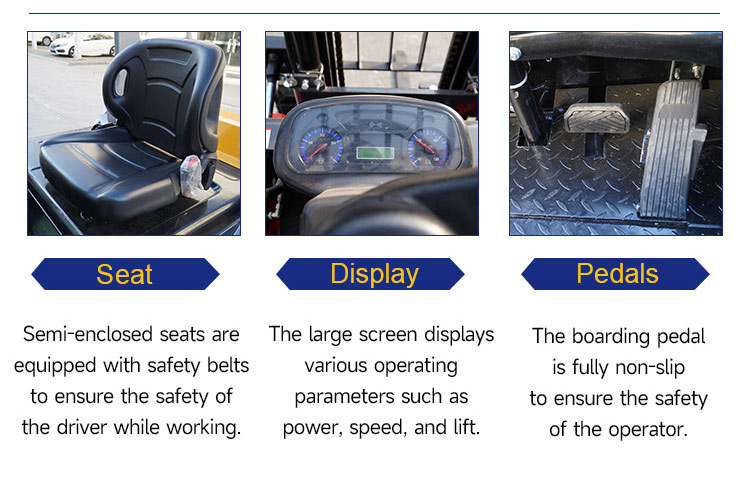

The cab design is humanized, equipped with spacious and comfortable seats, large-screen displays and anti-slip pedals, and the travel, lifting and tilting speeds can be adjusted according to personal needs to improve work efficiency and operating comfort.

Model	R525D
Maximum lifting weight	2200kg
long	2500mm(Does not include fork)
long	3570mm(Contains forks)
Width	1100mm
high	2150mm
Vehicle dead weight	3100kg
Lifting height	3000mm
Body material	Thickened one-piece stamped body
Travel motor	7.5kw AC motor
Voltage	60v
controller	Hager controller
Battery	10 maintenance-free batteries(12v-85v)
lights and signals	Lighting lights, left and right turn signals, brake lights, driving lights, instruments, electric horns, etc
Drive axle	Cast steel integrated vehicle-specific bridge
tire	Front wheel 650-10,rear wheel 500-8 solid tires
Steering bridge	Special rear axle for heavy-duty steel plate forklifts
Braking method	Hand brake, oil brake
Lifting cylinder	High precision aviation grinding casing, one-way double cylinder
Fork length	1070mm
Hydraulic lift motor	3kW AC motor
steering method	Hydraulic assist method
Turning radius	2450mm
