2.5Ton Mini Excavator

1.ODM,can be customized

2.Sino-German joint venture ,German technology

3.Yanmar/Kubota diesel engine

4.Imported accessories,used thicker high-quality steel

5.Signle-forging forming cylinder,not esay to break,built-in NOK seal.

6.The cab can be equipped with air conditioning

Contact Now

Product Details

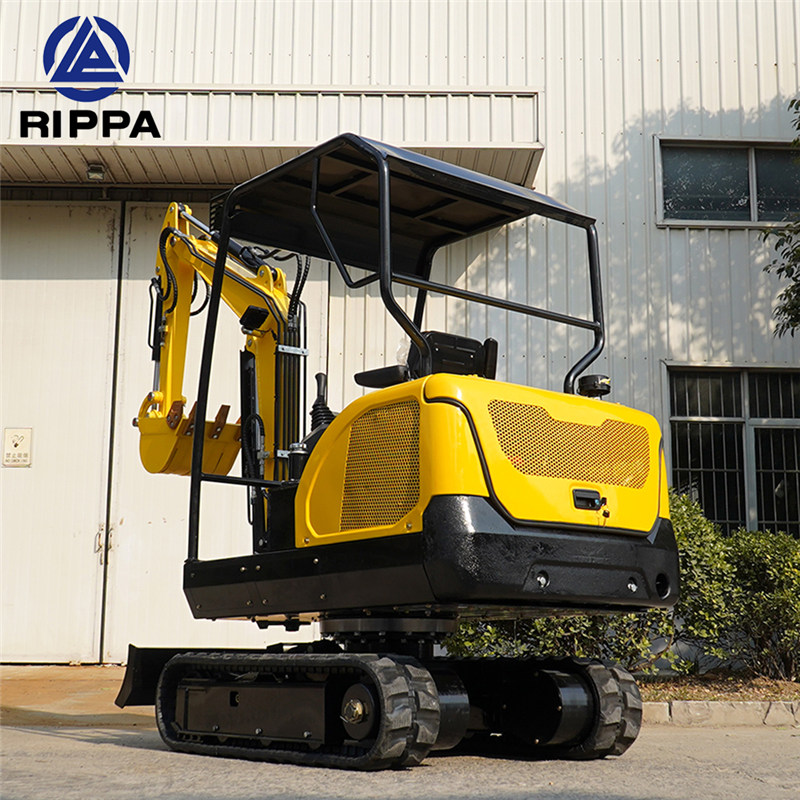

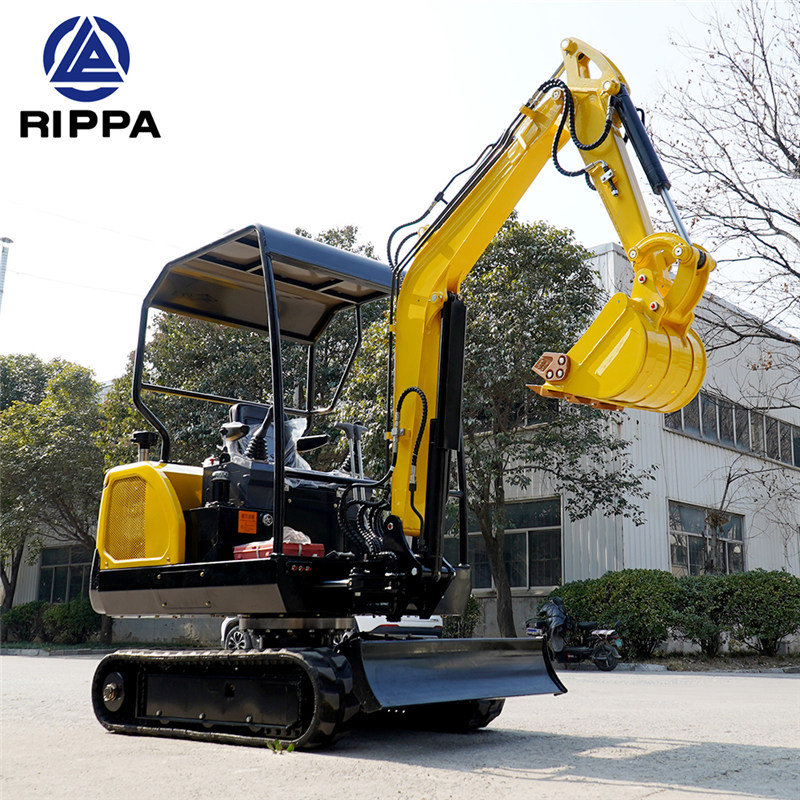

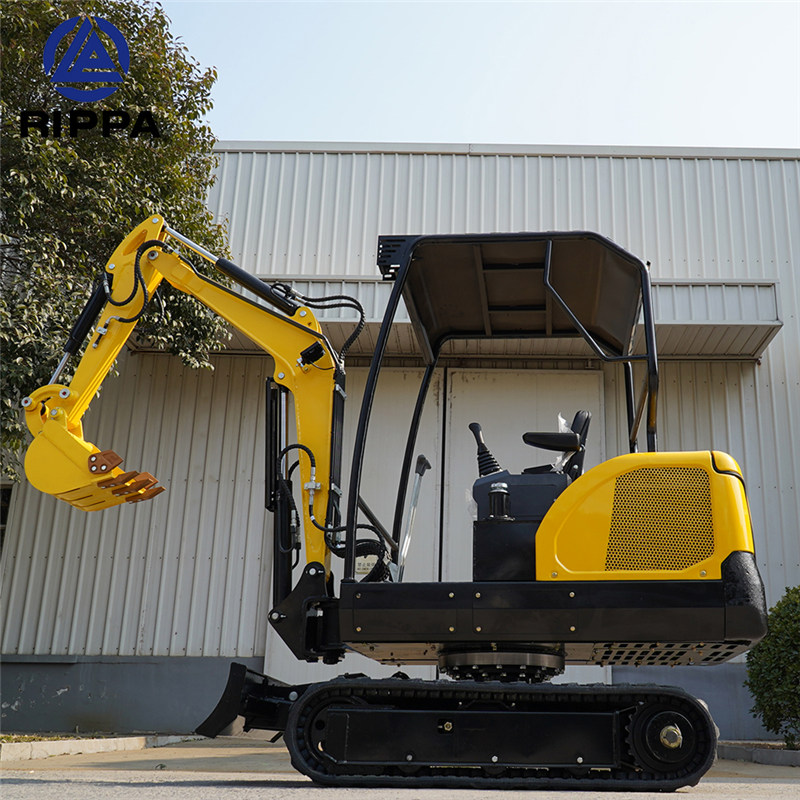

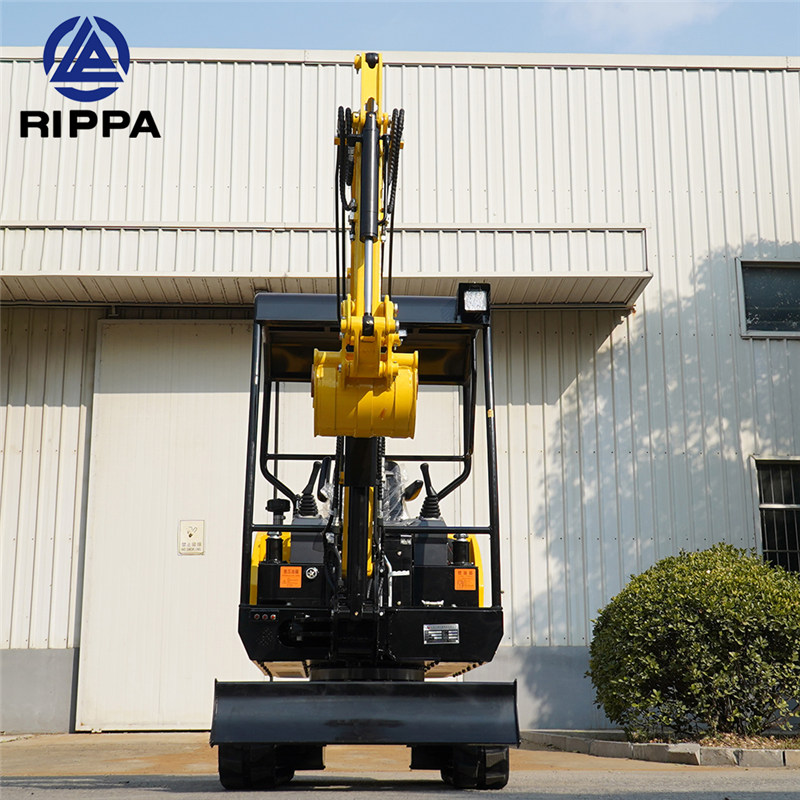

Rippa 2.5T is a home mini digger. Cab with air conditioner or fan. Allows you to have a comfortable working environment even in harsh environments. Using quick-change joints, you can choose accessories such as rotary drills, crushers, loading and unloading buckets, fixtures, etc., to reduce maintenance and operation costs, free up labor, improve the degree of mechanization, and achieve low investment and high return. Oil cylinder and piston rod forging, imported oil seal more durable and reliable.

mini excavator 2.5 ton.jpeg

2t excavator.jpeg

Specification

Model	R330 mini excavator
WEIGHT
Total weight	2500kg
SIZE
Total length	3635mm
Total width	1200mm
Total height	2270mm
Max.digging radius	41000mm
Max.Digging depth	2200mm
Max.digging height	3200mm
Max.dumping height	2800mm
Min.ground clearance	210mm
DRIVE
Engine brand	Yanmar/Kubota
WALKING CHARACTERISTICS
Walking speed	0-4.5km/h
Climbing angle	35°

Contact Our Team For A Quote

Details

Mini digger bagger mini excvator the crawler adopts three layers of rubber engineering natural rubber crawler, the raw material is imported from Thailand, the internal steel plate and steel wire, the service life is longer.

The oil cylinder is forged and formed at one time, which is not easy to break, and there is a built-in NOK sealing ring. We used nine-tooth spline gear pump,Technology precision and Very hardness. The tubing adopts multi-layer steel wire design, which can withstand 100MP.

mini excavator price.jpeg

Application

2.5 ton crawler hydraulic mini excavator applicable to indoor demolition,toilet upgrading,engineering forcible entry,excavator barren hills,small earthwork,municipal projects,break concrete,dredging river and pther working environment.

rippa mini excavator.jpeg
