big forklift
Product advantages:
Excavator are CE marked throughout the range.
Small excavators meet Euro 5 and EPA emission standards.
Bulk orders are available at preferential prices.
Manufacturers have inventory and deliver quickly.
Customer service staff is online 24 hours a day.
ODM/OEM is supported.
Get quotes online.

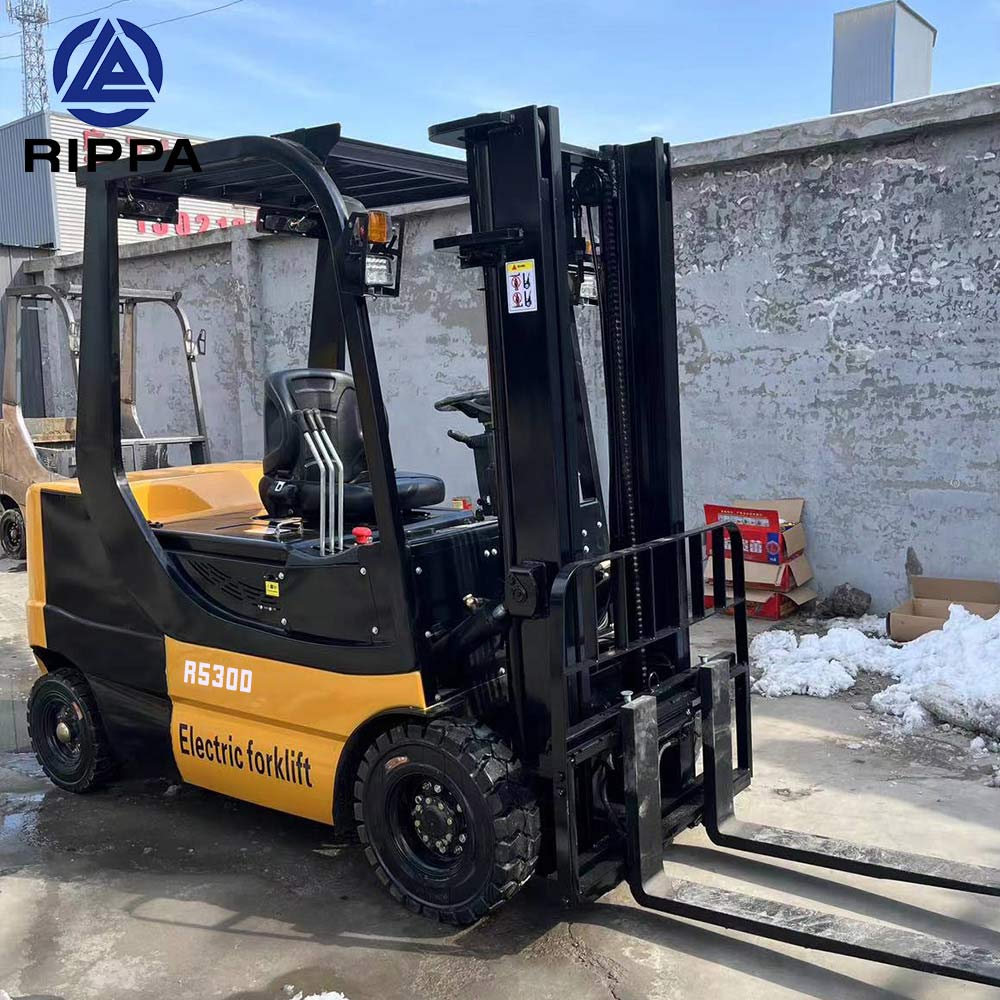

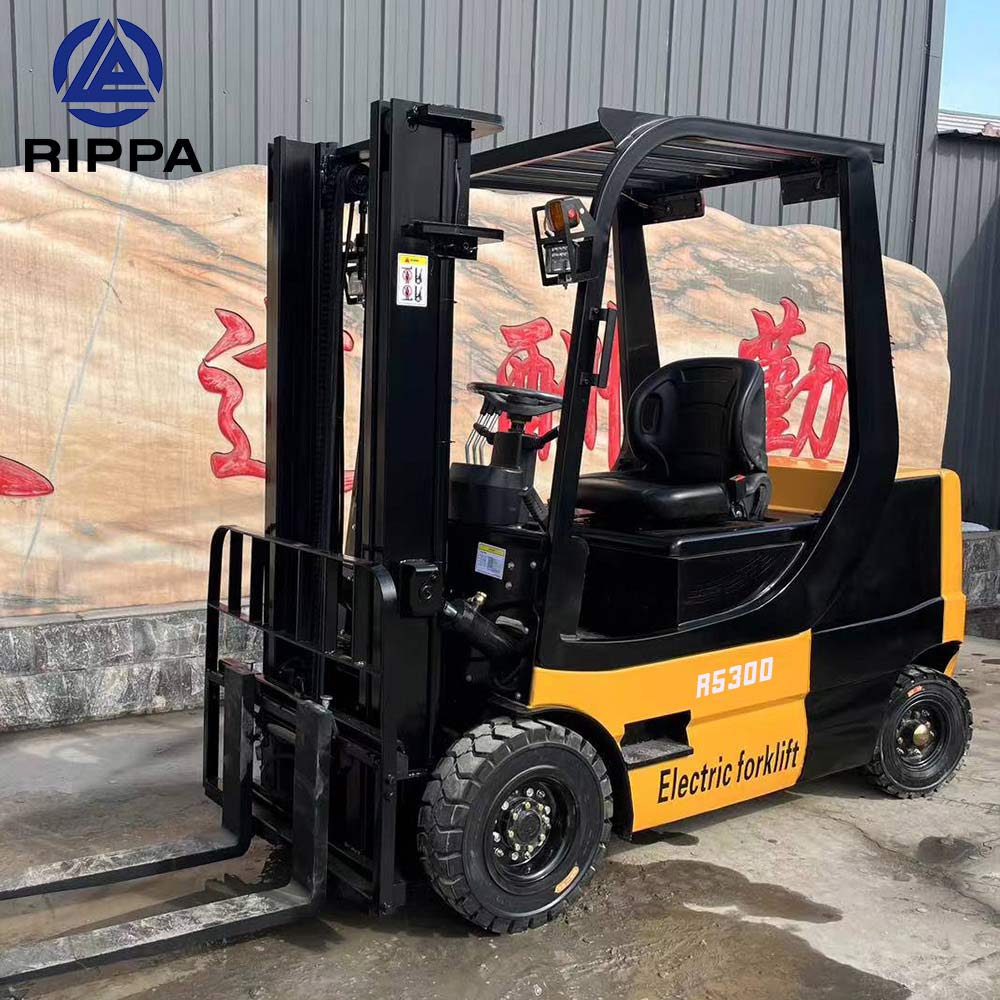

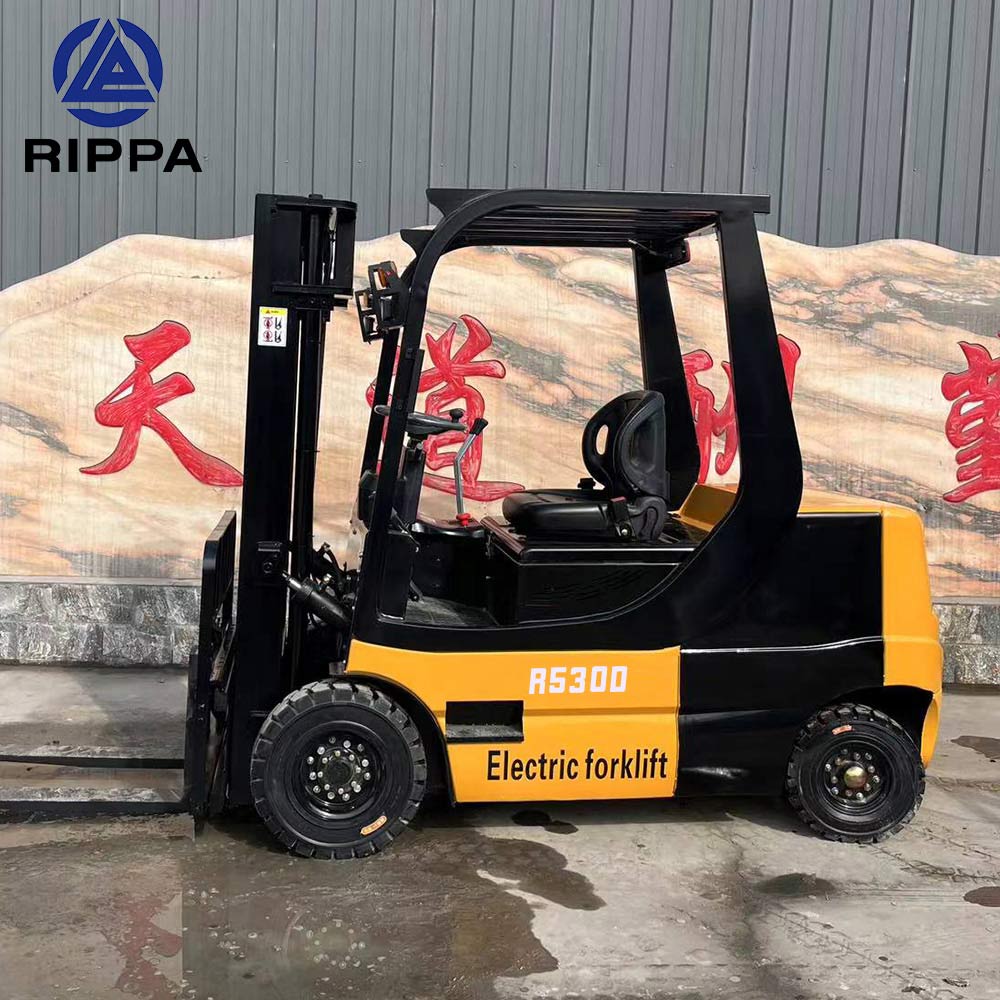

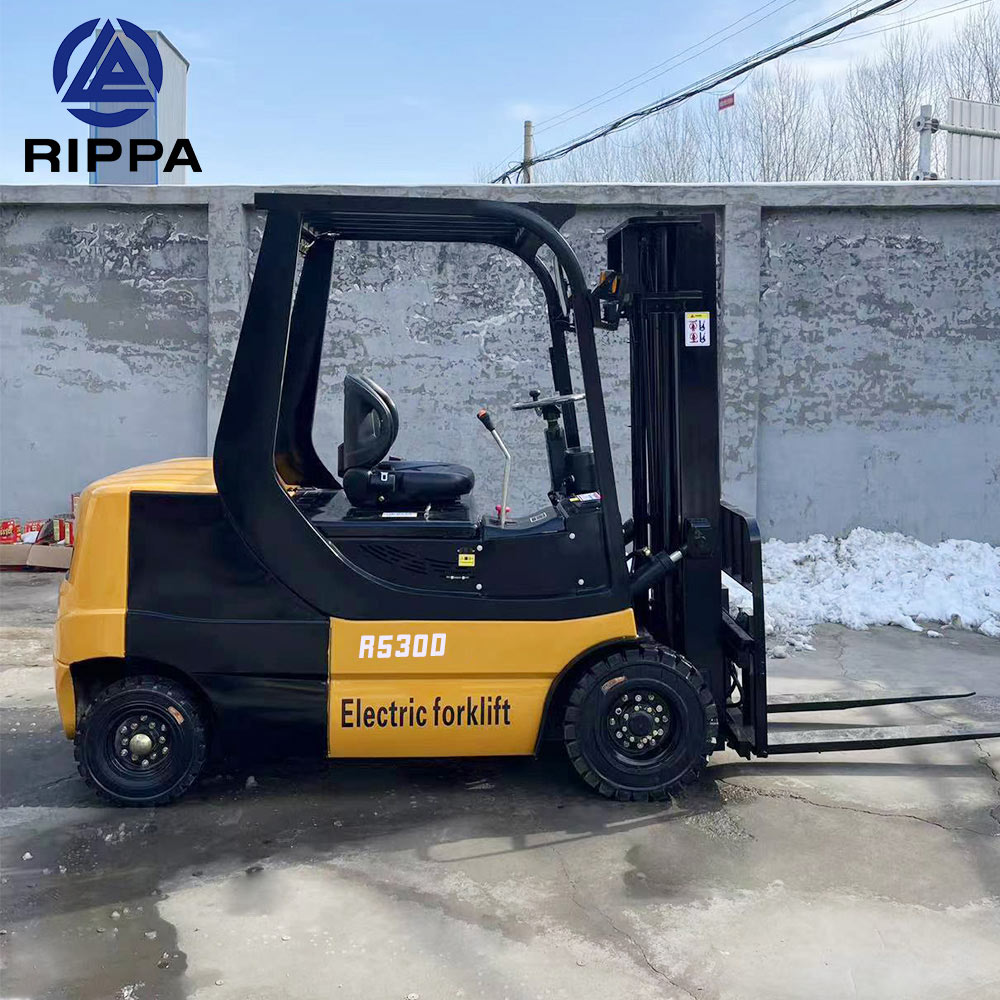

Product Details
| MAIN SPECIFICATIONS | R530D |
|---|---|
| Maximum lifting weight | 3200kg |
| Length | 2520mm |
| Width | 1150mm |
| Height | 2100mm |
| Vehicle dead weight | 4000kg |
| Tire type | Solid tire (one-piece stamped) |
| Voltage | 60V |
| Controller | Hager controller |
| Battery | 1.5-3.0 maintenance-free batteries (12V-85) |
| Lights | Lighting, lights, left and right turn signals, brake lights, driving lights, instruments, electric horn |
| Motor | 7.5kW AC motor |
| Fork length | 1000mm |
| Fork width | 150mm |
| Fork height | 650-100mm, suitable for standard pallets |
| Steering | High precision hydraulic steering, single cylinder |
| Turning radius | 2250mm |
| Remark | The rear axle is equipped with a side shift distance-adjusting function. The front axle is equipped with a hydraulic side shift function. |
1. High-precision gantry
The R530D is equipped with a high-precision gantry design to ensure stability and safety when lifting and carrying heavy objects. The design of the gantry has been carefully optimized to provide excellent support and operational flexibility in various working environments.
2. Reinforced front frame
The front frame of the forklift has been reinforced to enhance the strength and durability of the overall structure. This design not only improves the carrying capacity of the forklift, but also effectively resists external impacts and extends the service life of the equipment.
3. Off-road tires
The R530D uses off-road tires, which are suitable for driving on various complex terrains. This tire design provides better grip and stability, allowing the forklift to easily operate on uneven ground, ensuring safety and efficiency.
4. Efficient battery
The forklift is equipped with an efficient battery system with long endurance and fast charging. Whether in long work shifts or when frequent charging is required, the R530D can maintain efficient working conditions and reduce downtime.
Product form
