6 Ton Excavator R360

1.ODM,can be customized

2.Sino-German joint venture ,German technology

3.Yanmar/Kubota diesel engine

4.Imported accessories,used thicker high-quality steel

5.Signle-forging forming cylinder,not esay to break,built-in NOK seal.

6.The used of internayionally renowned brand reducers.

Contact Now

Product Details

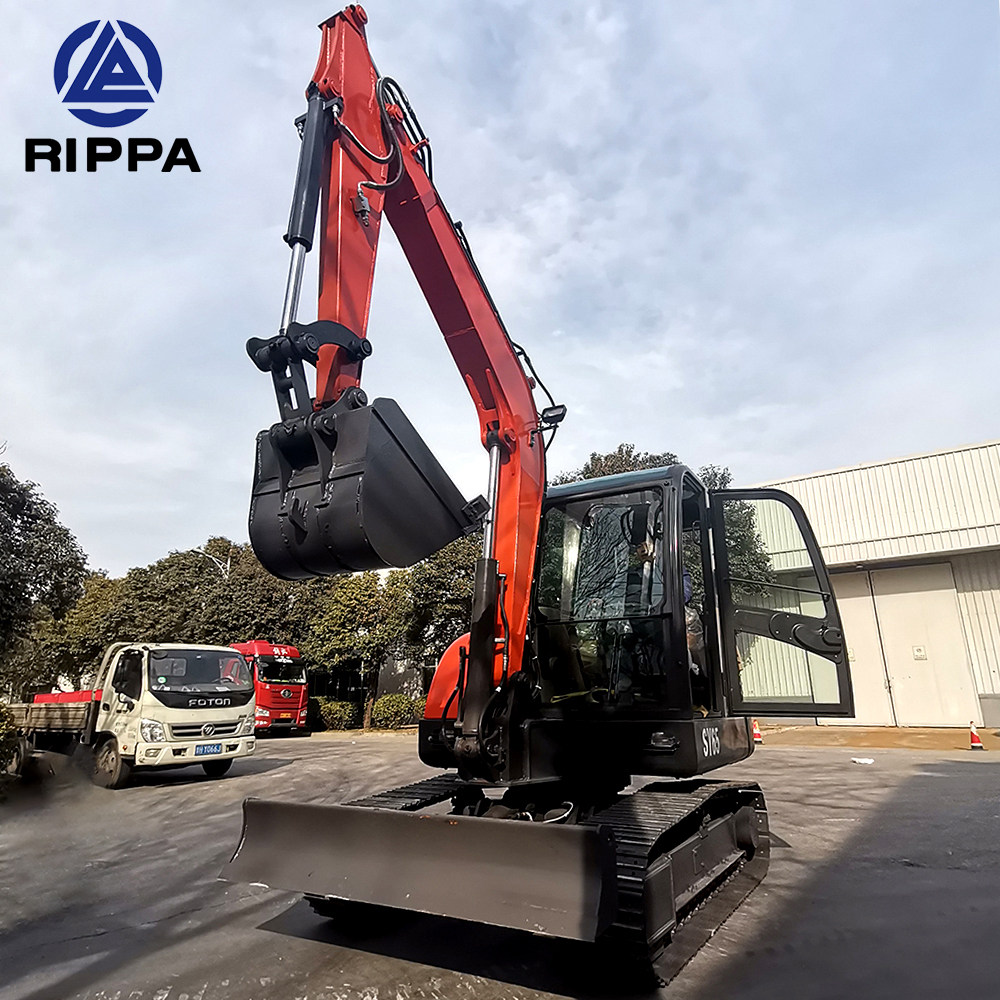

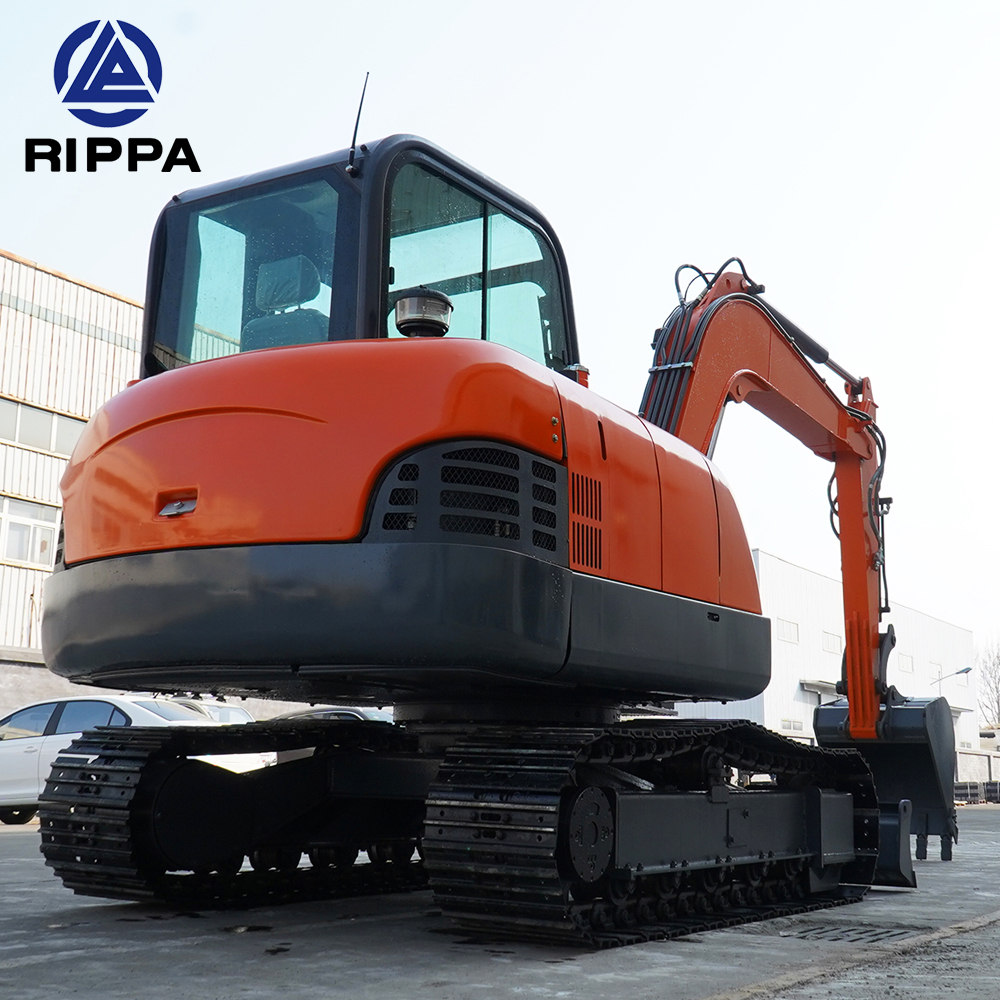

Rippa R360 mini excavators crawler hydraulic mini pell 6.2t gear is used to repair the ground, damage the concrete, and for cable pouring, water pipe laying, planting, river / ditch cleansing and introduction tasks. The mini excavator is Japan's Kubota engine, the United States Eaton motor, and makes use of internationally familiar badge reductant. The mini bagger is a 360 diploma freely rotatable frame. The constant variable column cold pump adopts pure imported factors from Korea, and the working curve of the valve stem matches the hydraulic valve. 16Mn metallic plate is used, and each and every bushing is quenched, tempered and tempered.

6T Excavator

Specification

Model	R360 mini excavator
WEIGHT
Total weight	6200kg
SIZE
Total length	5850mm
Total width	1880mm
Total height	3250mm
Max.digging radius	6200mm
Max.Digging depth	3900mm
Max.digging height	5800mm
Max.dumping height	4030mm
Min.ground clearance	720mm
DRIVE
Engine brand	Yanmar
WALKING CHARACTERISTICS
Walking speed	2.4-3.8km/h
Climbing angle	30°

Details

R360 6 ton mini excavator can pick out kubota engine,the hydraulic cylinder adopts sealing components to forestall oil leakage; the piston rod is made of one-time forging, besides welding; it is now not handy to break.

kubota engine.jpg

Application

6.2 ton crawler hydraulic mini excavator relevant to indoor demolition,toilet upgrading,engineering forcible entry,excavator barren hills,small earthwork,municipal projects,break concrete,dredging river and pther working environment.
