60 Ton Large Excavator
Engine: Japan Yanmar 4TNV94L
Rated power: 38.1kw/2200rpm
Control valve: Parker
The Rippa LP60-9L small excavator has stable performance and convenient operation. It adopts the original Japanese Yanmar engine to meet the domestic exhaust emission standards.
Product Details
The Rippa NDI600-9L small excavator has stable performance and convenient operation. It adopts the original Japanese Yanmar engine to meet the domestic exhaust emission standards. It is equipped with a new type of cooling fan and a large muffler. It is an environmentally friendly engine that fully meets the European noise standards. While working, take into account the development of urban environmental protection.
.Flexible operability is the core of the work. Rippa NDI600-9L excavator adopts the best hydraulic system in Korea. The driver can distribute the oil evenly according to the operation requirements, so that the power arm, stick and bucket can enter
Flexible, fast and efficient operation. To achieve real freedom.
MORD PARAMETERS
SMALL EXCAVATOR NDI600-9L | |||
Specification | Overall height of cab (mm) | 2580 | |
Working weight of the whole machine (kg) | 5700 | Radius of tail gyration (mm) | 1650 |
Bucket capacity range (m3) | 0.09-0.175 | Counterweight level (mm) | 700 |
Boom length (mm) | 3000 | Track length (mm) | 2540 |
Stick length (mm) | 1600 | Overall width of track (mm) | 1880 |
performance | Track shoe width (mm) | 400 | |
Rotation speed (rpm) | 9 | Overall length (mm) | 5850 |
Walking speed (km/h) | 4.16/2.3 | Minimum ground clearance (mm) | 400 |
Bucket digging force (KN) | 44 | Scope of work | |
Stick digging force (KN) | 29 | Maximum digging range (mm) | 6150 |
engine | Maximum digging range on the ground | 6150 | |
engine model | Yanmar 4TNV94L | Maximum digging depth (mm) | 3890 |
Rated power (kw/rpm) | 38.1/2200 | Maximum excavator height (mm) | 5780 |
cooling method | Water cooling | Maximum discharge height (mm) | 4060 |
Body size | Maximum vertical wall depth that can be excavated (mm) | 3025 | |
Full width of upper part (mm) | 2000 | ||

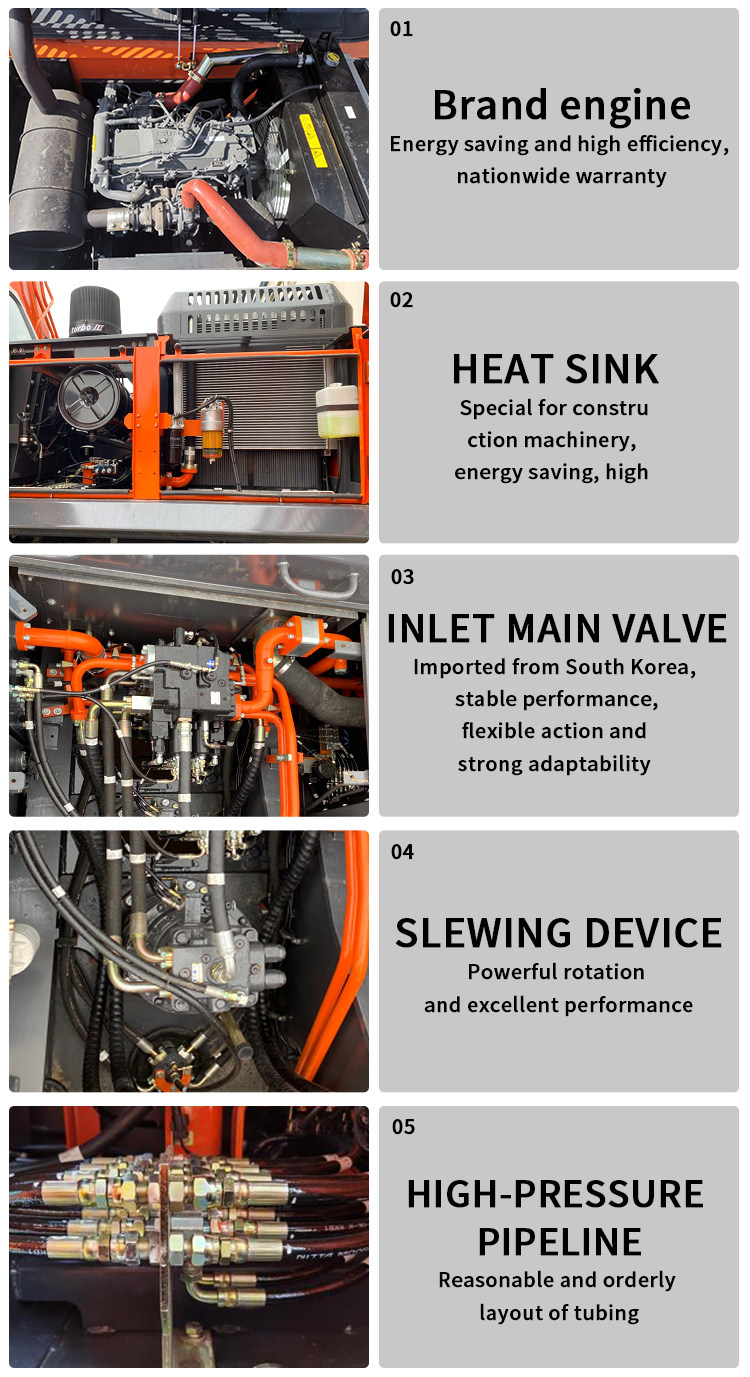

Details
Application
The Rippa NDI600-9L excavator is suitable for pipeline excavation, slope trimming, and small-scale construction in agriculture and forestry industries. It can also show excellent operating performance in small working spaces or difficult working environments.
