NDI60 Small Excavator

1.ODM，OEM，Can Be Customized

2.This Product Certificate: CE / ISO / EURO5 / EPA / SGS / ECM

3.The Cab Can Be Equipped With Air Conditioning

4.Fill In The Information, Be Our Agent!

Product Details

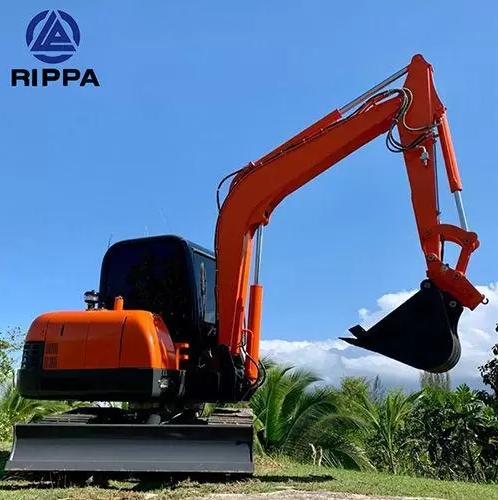

R360 6Ton mini excavator, powered by way of Yangma engine, can meet the desires of one-of-a-kind nations at domestic and abroad; The die is fashioned by using built-in stamping, lovely and atmospheric, and has excessive power and durability.The NDI60 (6 Ton) small mini excavator is appropriate for excavation of pipelines, trimming of slopes, and small development in industries such as agriculture and forestry. It additionally well-knownshows bendy working overall performance in tight working areas or tough working environments.


MORD PARAMETERS

MODEL	NDI60
Specification
weight（kg）	6000
bucket （m³）	0.09-0.175
boom length(mm)	3000
stick lenght(mm)	1600
Performance
swing speed（rpm）	9
walking speed（Km/h）	4.16/2.3
bucket digging force（KN）	44
stick digging force（KN）	29
Engine
engine model	Yanmar 4TNV94L
rated power（Kw/rpm）	38.1/2200
cooling method	water cooling
Mainbody size
Upper width(mm)	2000
cabin height(mm)	2580
tail radius of gyration(mm)	1650
counterweight level height(mm)	700
crawler length(mm)	2540
crawler width(mm)	1880
crawler palte width(mm)	400
whole length(mm)	5850
minimum ground distance(mm)	400
Work range
maximum diggign range(mm)	6150
ground maximum digging range(mm)	6150
maximum digging depth(mm)	3890
maximum digging height(mm)	5780
maximum unloading height(mm)	4060
maximum digging vertical depth(mm)	3025
