R350 Mini Excavator

1.ODM,OEM,Can Be Customized

2.This Product Certificate: CE / ISO / EURO5 / EPA / SGS / ECM

3.The Cab Can Be Equipped With Air Conditioning

4.Fill In The Information, Be Our Agent!


  Contact Now
Product Details

The components of the machine are all imported with better performance. It is popular with people in agricultural and construction fields, since it can be used for wasteland opening, rock excavation, road opening on the hills, planting, construction site, road breaking, cable trench excavation, drainage excavation and indoor/outdoor breaking.

Mini Excavator

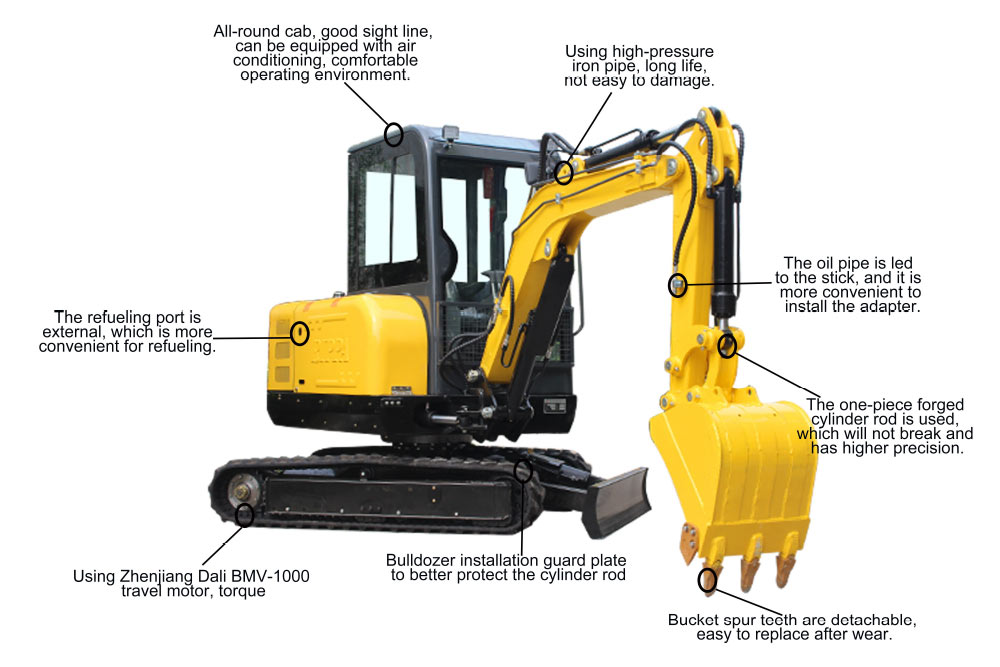

FEATURE

  1. Imported accessories, improve work efficiency.

  2. Hydraulic pilot control, accurately control by the feet.

  3. Using load sensitive variable plunger pump , smooth operation and flexible movement.

  4. The enlarged cab to make you get on/off comfortably.

  5. Disk with flow cycloid motor shuttle valve supporting hydraulic brake disc 2nd grad gear reducer.

STANDARD CONFIGURATION

Changchai engine / Pilot multiple valve / Foot walking / Load sensitive variable piston pump / U.S.A Eaton motor / Inlet cylinder, tubing with build-in NOK sealing ring / Adjustable dozer / Wear-resistant engineering rubber track / Adjustable driver’s seat / Standard bucket / Swing function / Hydraulic lock / Cab / Escape hammer / Portable fire extinguisher / Sunshade / Fan

OPTIONAL CONFIGURATION

Hammer / Ripper / Log grapple / Rake / Auger drill / large bucket / Air conditioner / Yanmar engineSteel track / rubber block track / rubber track / mud bucket

APPLICATION

 Applicable to indoor demolition, toilet upgrading,engineering forcible entry,excavate barren hills,small earthwork, municipal projects,break concrete,dredging river and other working environment.

Mini Excavator

Mini Excavator

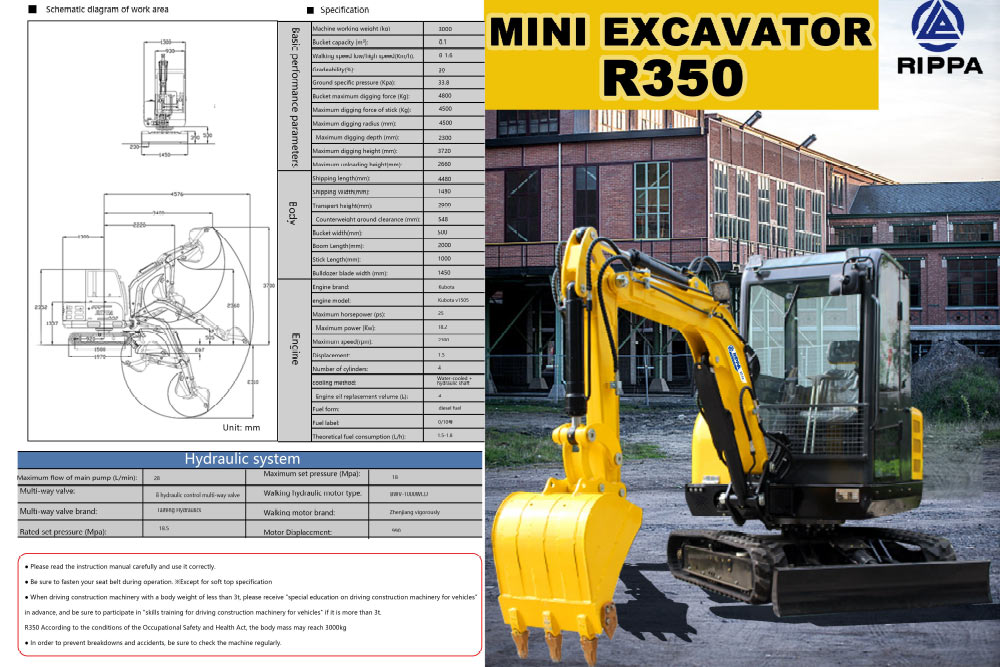

MORD PARAMETERS

MODELR350
WEIGHT
Total weight3000kg
SIZE
Total length4370mm
Total width1450mm
Total height2400mm
Max. digging radius4300mm
Max. digging depth2400mm
Max. digging height3850mm
Max. dumping height3000mm
Min. ground clearance210mm
DRIVE
Engine brandChangchai/Yanmar
Engine model390Q
Output power20kw
WALKING CHARACTERISTICS
Walking speed0-4.6km/h
Climbing angle35°


Product form
