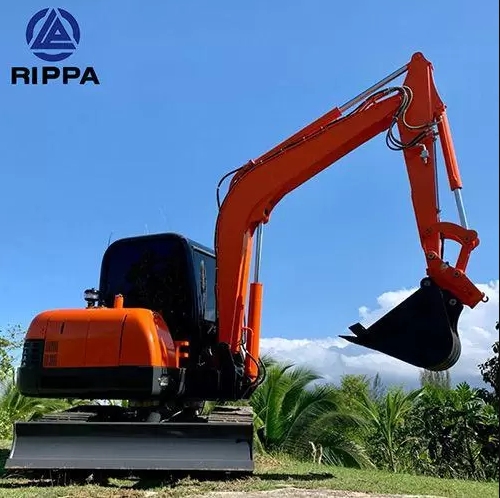

R360 Mini Excavator
1.ODM，OEM，Can Be Customized
2.This Product Certificate: CE / ISO / EURO5 / EPA / SGS / ECM
3.The Cab Can Be Equipped With Air Conditioning
4.Fill In The Information, Be Our Agent!
Product Details

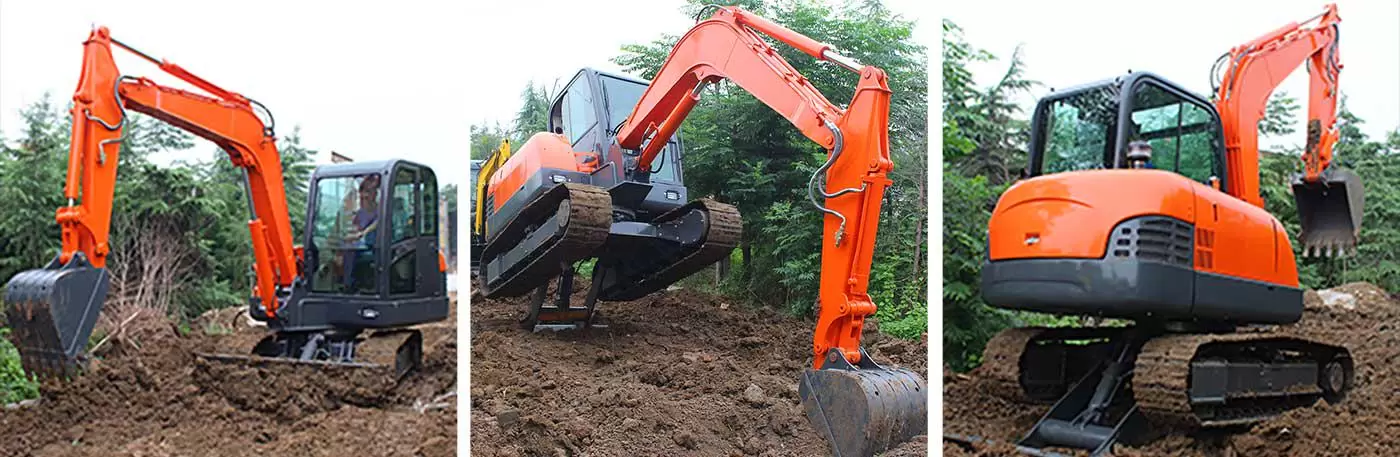

R360 6Ton mini excavator, powered by Yangma engine, can meet the needs of different countries at home and abroad; The die is formed by integrated stamping, beautiful and atmospheric, and has high strength and durability.The NDI60 (6 Ton) small mini excavator is suitable for excavation of pipelines, trimming of slopes, and small construction in industries such as agriculture and forestry. It also exhibits flexible working performance in tight working spaces or difficult working environments.
MORD PARAMETERS
| MODEL | NDI60 |
| Specification | |
| weight（kg） | 6000 |
| bucket （m³） | 0.09-0.175 |
| boom length(mm) | 3000 |
| stick lenght(mm) | 1600 |
| Performance | |
| swing speed（rpm） | 9 |
| walking speed（Km/h） | 4.16/2.3 |
| bucket digging force（KN） | 44 |
| stick digging force（KN） | 29 |
| Engine | |
| engine model | Yanmar 4TNV94L |
| rated power（Kw/rpm） | 38.1/2200 |
| cooling method | water cooling |
| Mainbody size | |
| Upper width(mm) | 2000 |
| cabin height(mm) | 2580 |
| tail radius of gyration(mm) | 1650 |
| counterweight level height(mm) | 700 |
| crawler length(mm) | 2540 |
| crawler width(mm) | 1880 |
| crawler palte width(mm) | 400 |
| whole length(mm) | 5850 |
| minimum ground distance(mm) | 400 |
| Work range | |
| maximum diggign range(mm) | 6150 |
| ground maximum digging range(mm) | 6150 |
| maximum digging depth(mm) | 3890 |
| maximum digging height(mm) | 5780 |
| maximum unloading height(mm) | 4060 |
| maximum digging vertical depth(mm) | 3025 |
