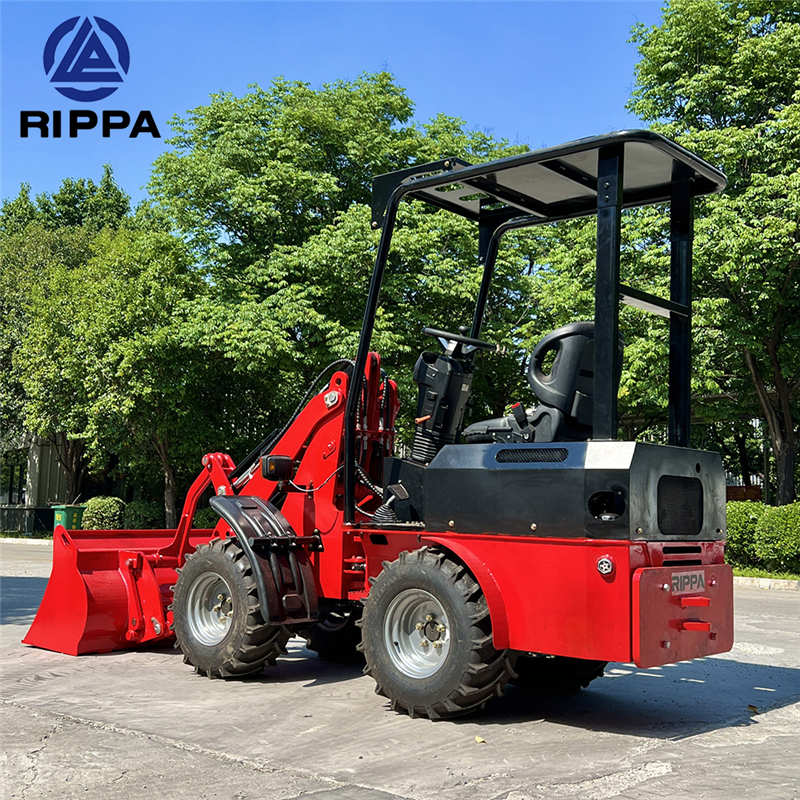

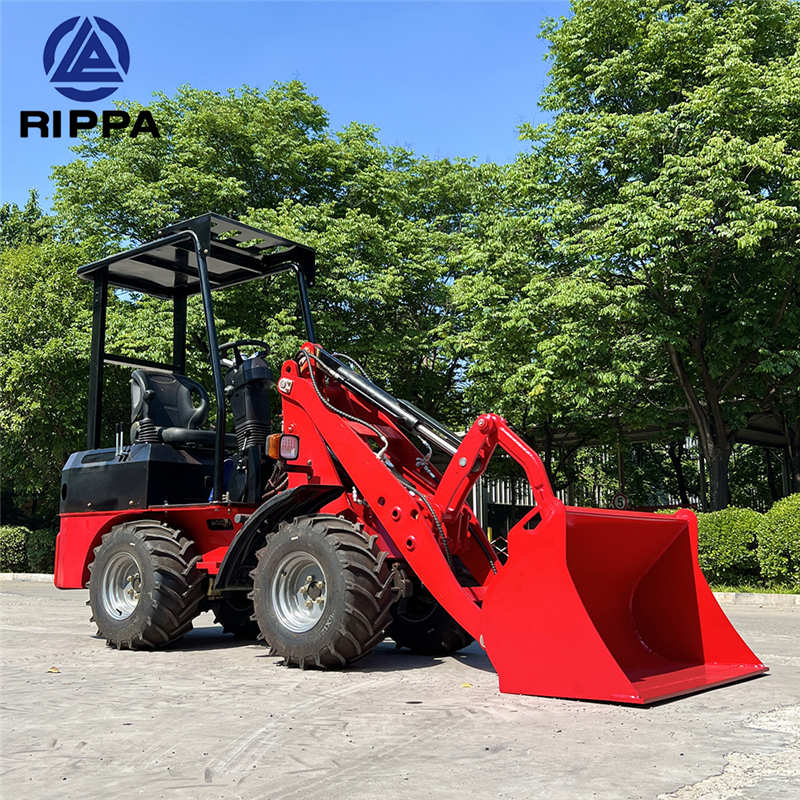

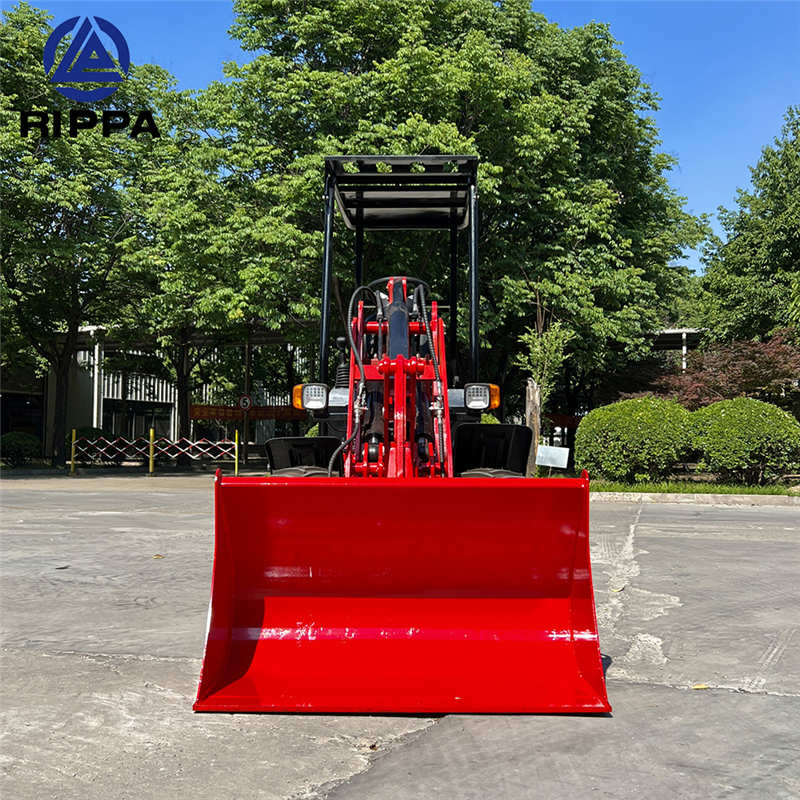

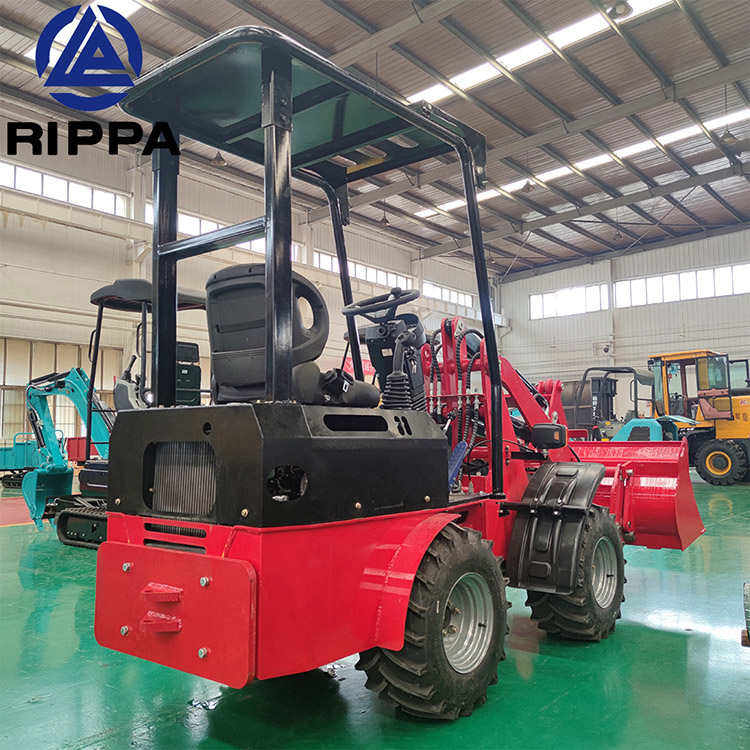

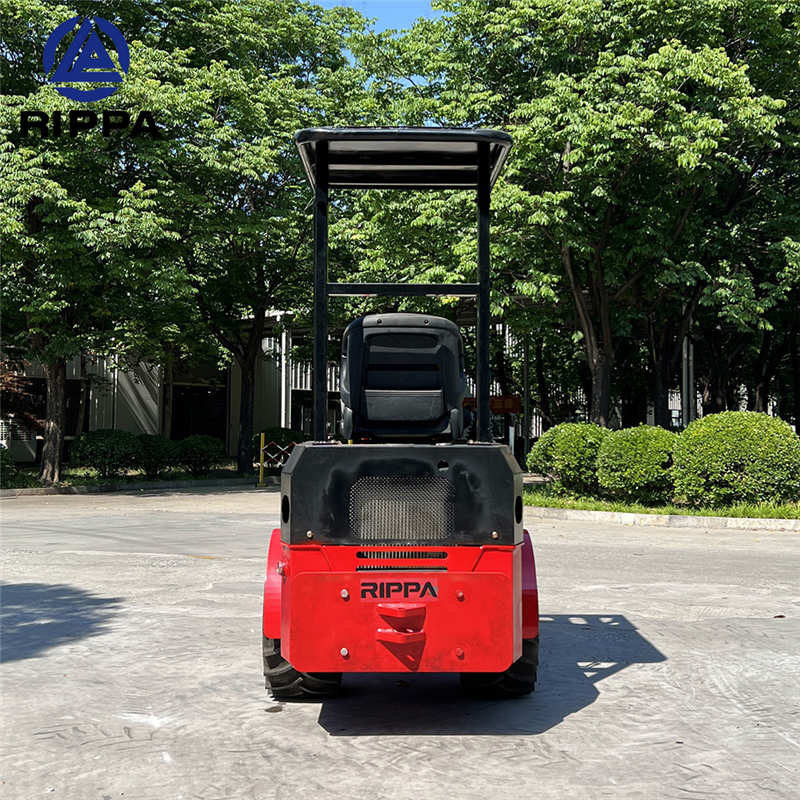

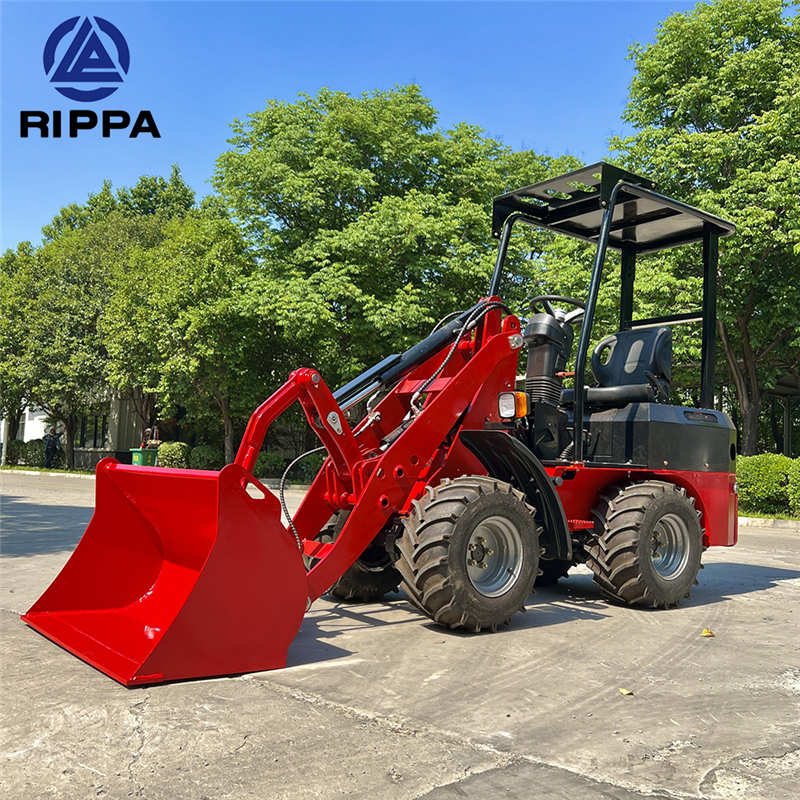

Rippa R906 Mini Wheel Loader

1. Meet the high efficient loading and unloading operation.

2. Flexible, rapid and high efficiency.

3. OEM and ODM Service available.

4. Warranty: 12 months warranty , beyond the warranty period.

Product Details

Rippa R906 Mini Wheel Loader fast, agile, efficient, much less probably to damage pavement, and has a greater floor voltage. Higher manufacturing efficiency and decrease storage costs. There is a big barrel and a shorter switch arm. Electronic joystick hydraulic take a look at system. Wheel loaders have a small turning radius and a massive angle. Tripod structure, the front frame, handy and secure operation. Air filtration, desirable filtration effect. It can meet the emission necessities of distinctive countries. Different auxiliary units can be chosen to obtain exceptional functions. Pressure faucets have to be used to correctly dispose of faults.

R906 Wheel Loader

Detail



Specification

Basic performance parameters
Total Weight（kg）	2340
Rated bucket capacity（m3）	0.6
Maximum travel speed（km/h）	0-6.4
Gradeability（%）	25
Rated loading quality（kg）	600
Hydraulic tank（L）	28
Fuel tank（L）	15
Maximum discharge height（mm)	2025
Discharge distance（mm）	650
Bucket lift time is full（s）	8
Bucket falling time（s）	4
Minimum clearance from the ground（mm)	155
Minimum turning radius（m）	2.4
Engine
engine model	Perkins
Rated speed（r/min）	2200
rated power（kw）	14.7

Application

The loader is mainly used for shoveling, loading, unloading, transporting soil and stone materials of a kind of bulk materials, but also for rock, hard soil for light shovel digging operations. If the work device is different, it can also complete the work of pushing earth, lifting and loading and unloading other materials. In highway construction, it is mainly used for filling and digging of roadbed engineering, aggregate and loading of asphalt and cement concrete material yard. Because it has the advantages of fast operation speed, good mobility and light operation, it has become the main machinery in earthwork construction.

A loader is a heavy system gadget utilized in construction to move or load materials which includes soil, rock, sand, demolition particles, and so forth. into or onto every other form of machinery including a sell off truck, conveyor belt, feed-hopper, or railroad car.
