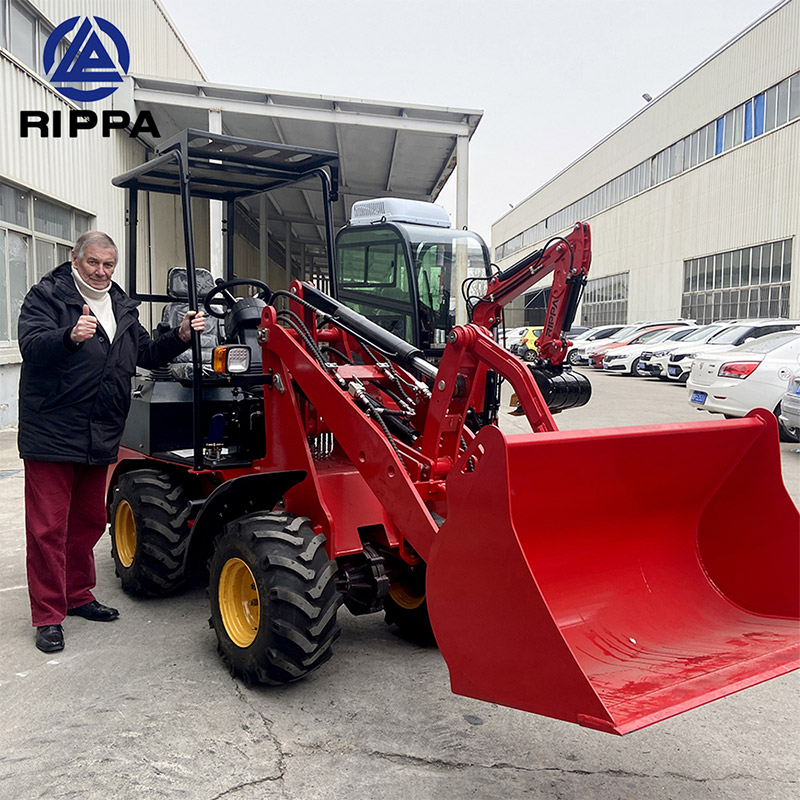

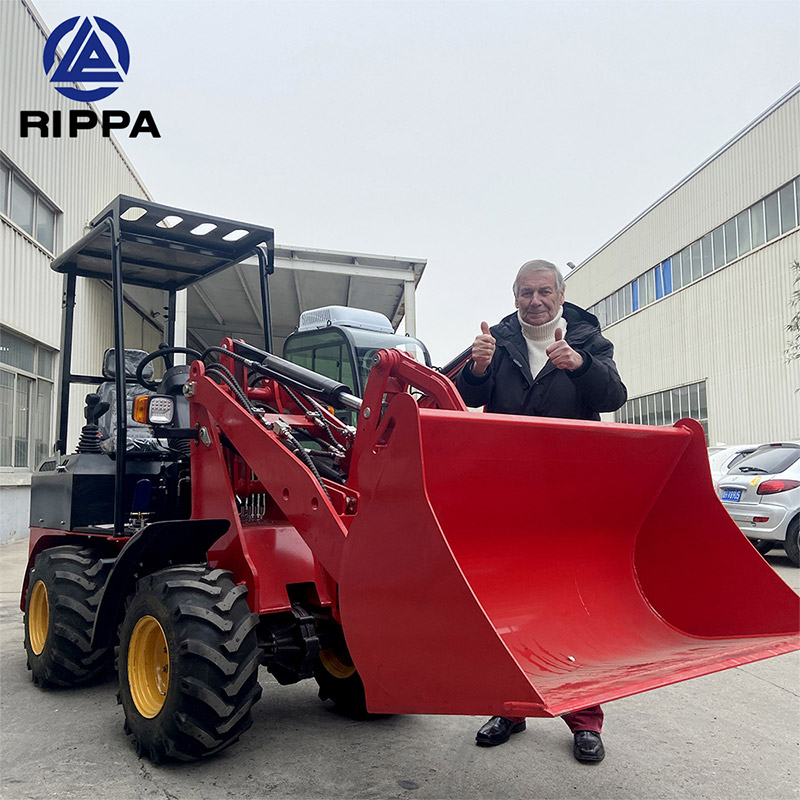

Wheel Loader Machine

1. Meet the high efficient loading and unloading operation.
2. Flexible, rapid and high efficiency.
3. OEM and ODM Service available.
4. Warranty: 12 months warranty , beyond the warranty period.



  Contact Now
Product Details

Wheel loader aspects operator comfort, overall performance and versatility. Size, power, overall performance and work device interchangeability make this computing device best for a huge vary of jobs. Fast cycle instances assist you go extra material. Large spacious cab with joystick manipulate maintains you relaxed at some stage in the workday, permitting you to get extra done.



Detail

mini dumpermini dumper's detail


Specification

Basic performance parameters

Total Weight(kg)

2340

Rated bucket capacity(m3)

0.6

Maximum travel speed(km/h)

0-6.4

Gradeability(%)

25

Rated loading quality(kg)

600

Hydraulic tank(L)

28

Fuel tank(L)

15

Maximum discharge height(mm)

2025

Discharge distance(mm)

650

Bucket lift time is full(s)

8

Bucket falling time(s)

4

Minimum clearance from the ground(mm)

155

Minimum turning radius(m)

2.4

Engine

engine model

Perkins

Rated speed(r/min)

2200

rated power(kw)

14.7


Application

The loader is basically used for shoveling, loading, unloading, transporting soil and stone substances of a sort of bulk materials, however additionally for rock, difficult soil for mild shovel digging operations. If the work gadget is different, it can additionally entire the work of pushing earth, lifting and loading and unloading different materials. In toll road construction, it is in most cases used for filling and digging of roadbed engineering, combination and loading of asphalt and cement concrete cloth yard. Because it has the blessings of speedy operation speed, true mobility and mild operation, it has grow to be the most important equipment in earthwork construction.

A loader is a heavy gadget system utilized in development to cross or load substances which consists of soil, rock, sand, demolition particles, and so forth. into or onto each different shape of equipment which include a promote off truck, conveyor belt, feed-hopper, or railroad car.
